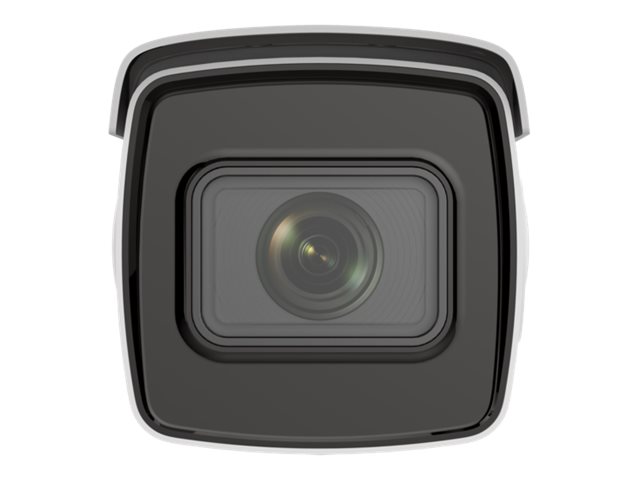

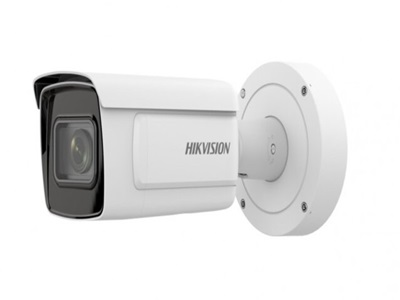

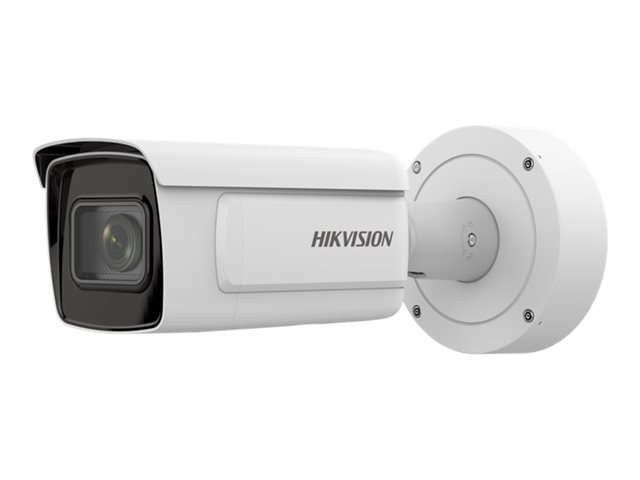

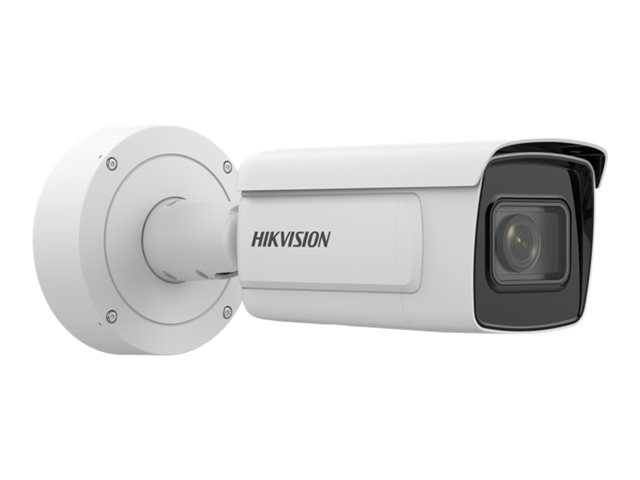

Cámara bala varifocal DeepinView Moto de 4 MP 30mt AcuSense Hikvision

• contra polvo/vandalismo/agua
• color (Día y noche)
• 4 MP
• 2680 x 1520
• iris automático
• motorizado
• con cable
• compuesto
• GbE
• MJPEG, H.264, H.265, H.265+, H.264+
• DC 12 V / PoE Plus Class 4

Se adjunta ficha tecnica y manual de usuario

Cámara

• Sensor de imagen1/1.8" Progressive Scan CMOS
• Max. Resolución2688 × 1520
• Iluminación mínima

Color: 0.0005 Lux @ (F1.2, AGC ON);

B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

• Tiempo de obturación1 s to 1/100,000 s
• Día y Noche

IR cut filter

Blue glass module to reduce ghost phenomenon

Lente

• Focal Length & FOV

2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

• EnfoqueAuto,Semi-auto,Manual
• Iris TypeP-iris
• Apertura

2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

DORI

• DORI

Wide:

2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m

8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m

Tele:

2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m

8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m

Iluminador

• Tipo de luz suplementariaIR
• Rango de luz suplementaria

2.8 to 12 mm: 50 m

8 to 32 mm: 100 m

• Luz de suplemento inteligenteYes
• IR Wavelength850 nm

AI Open Platform

• Model Specification

Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

Vídeo

• Main stream

50 Hz:

25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

• Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

• Compresión de video

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG

• Vídeo bitrate32 Kbps to 8 Mbps
• Tipo H.264Baseline Profile,Main Profile,High Profile
• Tipo H.265Main Profile
• Bit Rate ControlCBR,VBR
• Codificación de video escalable (SVC)H.264 and H.265 encoding
• Región de interés (ROI)4 fixed regions for each stream
• Recorte objetivoYes
• e-PTZSupport Patrol and Auto Tracking settings

Audio

• Velocidad de bits de audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Tipo de audioMono sound
• Filtro de ruido ambientalYes

Red

• ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Vista en vivo simultáneaUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
• Usuario/operador

Up to 32 users

3 user levels: administrator, operator, and user

• SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Almacenamiento en red

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClienteiVMS-4200,Hik-Connect,Hik-Central
• Navegador web

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen

• Interruptor de parámetros de imagenYes
• Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
• Interruptor día/nocheDay,Night,Auto,Schedule,Alarm Trigger
• Wide Dynamic Range (WDR)140 dB
• Mejora de la imagenBLC,HLC,3D DNR,Distortion Correction,Defog
• SNR≥ 52 dB
• Máscara de privacidad8 programmable polygon privacy masks
• Image StabilizationEIS
• Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interfaz

• Salida de Vídeo1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Alarma2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Salida de alimentaciónWith -Y: 12 VDC, max. 100 mA

Evento

• Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
• Evento inteligentescene change detection,audio exception detection,defocus detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function

• Detección de tipo multi-objetivo

Supports simultaneous detection and capture of human body, face, and vehicle,

Gets 7 face features,

Gets 13 human body features,

Gets 2 vehicle features,

Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,

Supports dynamic mosaic mask

• Captura de la cara

Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

Uploads face with background and closed-up face pictures,

Supports best shot and quick shot for capture mode,

Supports dynamic mosaic mask,

Gets 7 face features

• Comparación de rostros

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

Supports face library encryption

• Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Support combined event alarm triggering

• Conteo de personas

Supports Multi-Dimension People Counting,

Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

Supports real-time uploading and uploading by statistic cycle,

Supports generating daily, weekly, monthly or annually reports,

Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

Supports face feature deduplication,

Supports people flow data replenishment

• Gestión de colas

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: regional people queuing-up, waiting time detection

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

Supports raw data export for further analysis

Supports real-time data uploading and scheduled data uploading

Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

• Mapa de calor

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

Two report types are available, space heat map and time heat map line chart.

• Detección de cascos

Detects up to 30 human targets simultaneously

Supports up to 4 shield regions

• MetadatosIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
• Regional People Counting

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

Supports searching real-time number of people

People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

• On/Off Duty Detection

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: absence detection, on/off duty detection

Supports parameter settings: person on duty, absence duration

General

• alimentación

12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

• MaterialAluminum alloy body
• Dimensión

Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7\")

With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"

• Dimensión del paquete405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
• WeightApprox. 1950 g (4.2 lb.)
• Con peso del paqueteApprox. 3070 g (6.7 lb.)
• Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Función generalHeartbeat, mirror, password protection, one-key reset
• CalentadorYes
• Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Certificaciones

• EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

• Seguridad

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1

• Ambiente

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

• ProtecciónIP67: IEC 60529-2013,IK10: IEC 62262:2002
• Protección anticorrosiva-Y: NEMA 4X (NEMA 250-2018)
• Automotriz y ferroviarioEN50121-4
• OtrosPVC FREE
• CCCommon Criteria, Assurance Level: EAL2 + ALC_FLR.2
