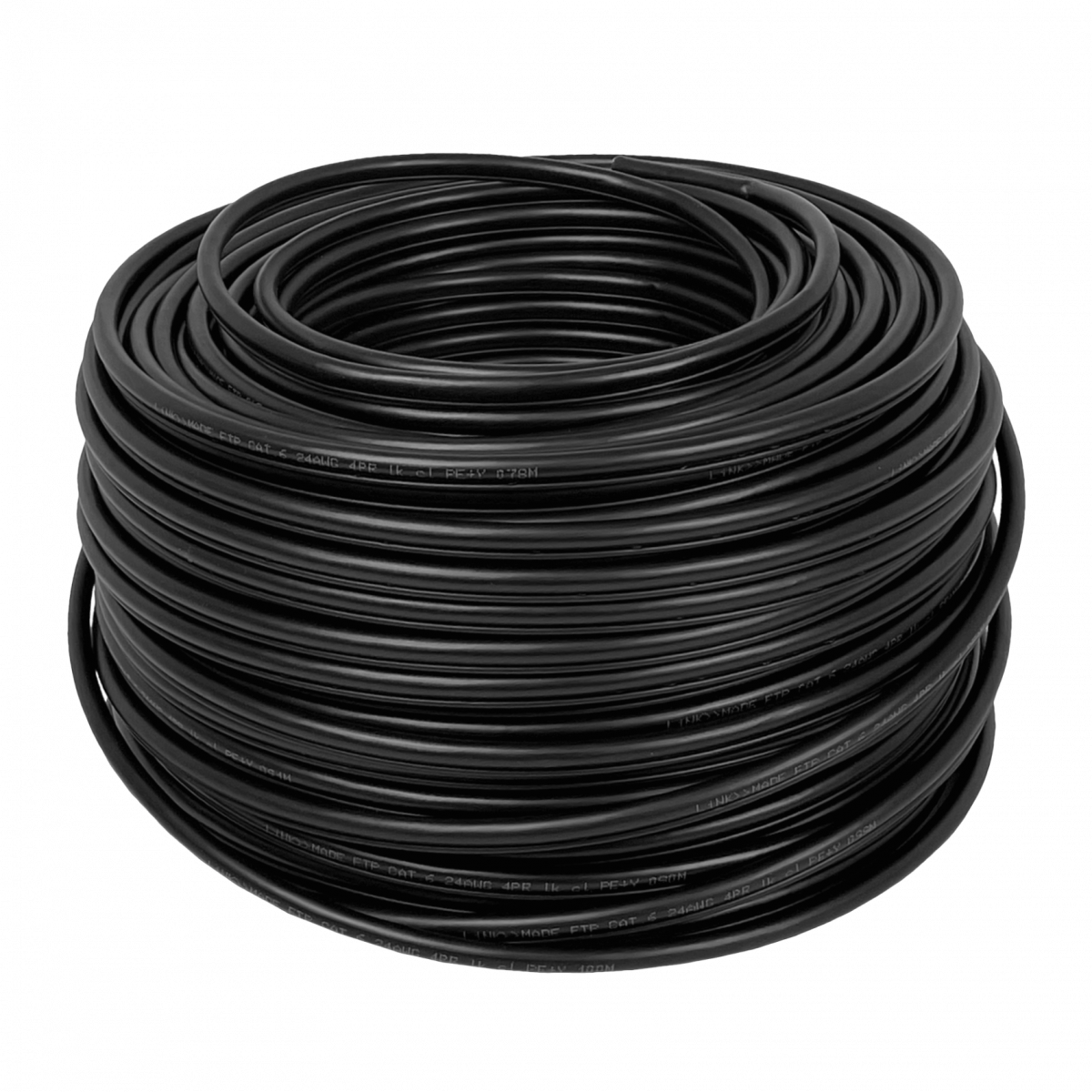

Cable Exterior Cat5e F/UTP Negro con Portante 100mt Unifilar Linkmade

Specification for Hyper-Data 1000

Cat.5e STP(FTP) Solid Lan Cable Spec. No. S1000527 Version: A

Date: May 27, 2011

UL 444 & CSA-C22.2 No.214: Type CM, 24AWG x 4P

ISO/IEC 11801: Horizontal Cable (Solid Conductor)

1.Conductor: Solid Bare copper (1 x AWG24)

2.Insulation : HDPE(CMI-75E)

Min. Avg. Thickness: 0.201 mm;

Min. Thickness: 0.175mm

3.Color Code:

Pair 1: Blue & White/Blue;

Pair 2: Orange & White/Orange

Pair 3: Green & White/Green;

Pair 4: Brown & White/Brown

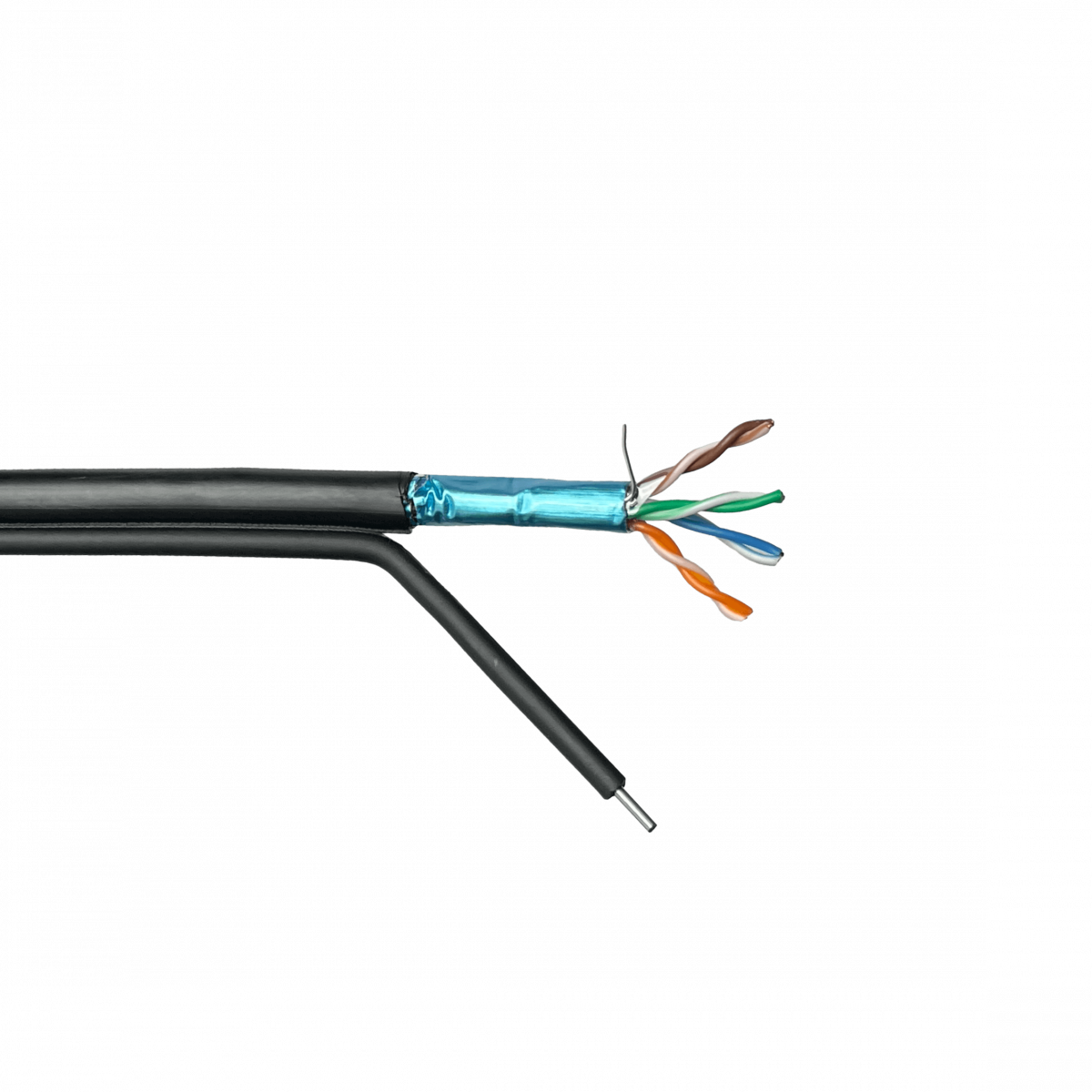

4. Shield: drain wire(tinned copper conductor)

and aluminum-mylar tape.

5.Jacket: 75ºC PVC Compound (CMI-80S)

Min. Avg. Thickness: 0.585 mm;

Min. Thickness: 0.458 mm

Overall diameter : 5.8 mm +/- 0.3mm

6.Electric Requirements: (Cable length: 100-300M)

Characteristic Impedance(Zo): 85 - 115Ω (1 -100 MHz)

DC. Resistance Capac. Unbalance: 5%

Pair-to-Ground Capac. Unbalance: 330 pF/100M Max

Conductor Resistance: 9.38Ω/ 100M 20ºC Max

Mutual Capacitance: 5600 pF/100m Max

Spark Test: 2.5KV

Nominal Velocity of Propagation (NVP): 70 %
