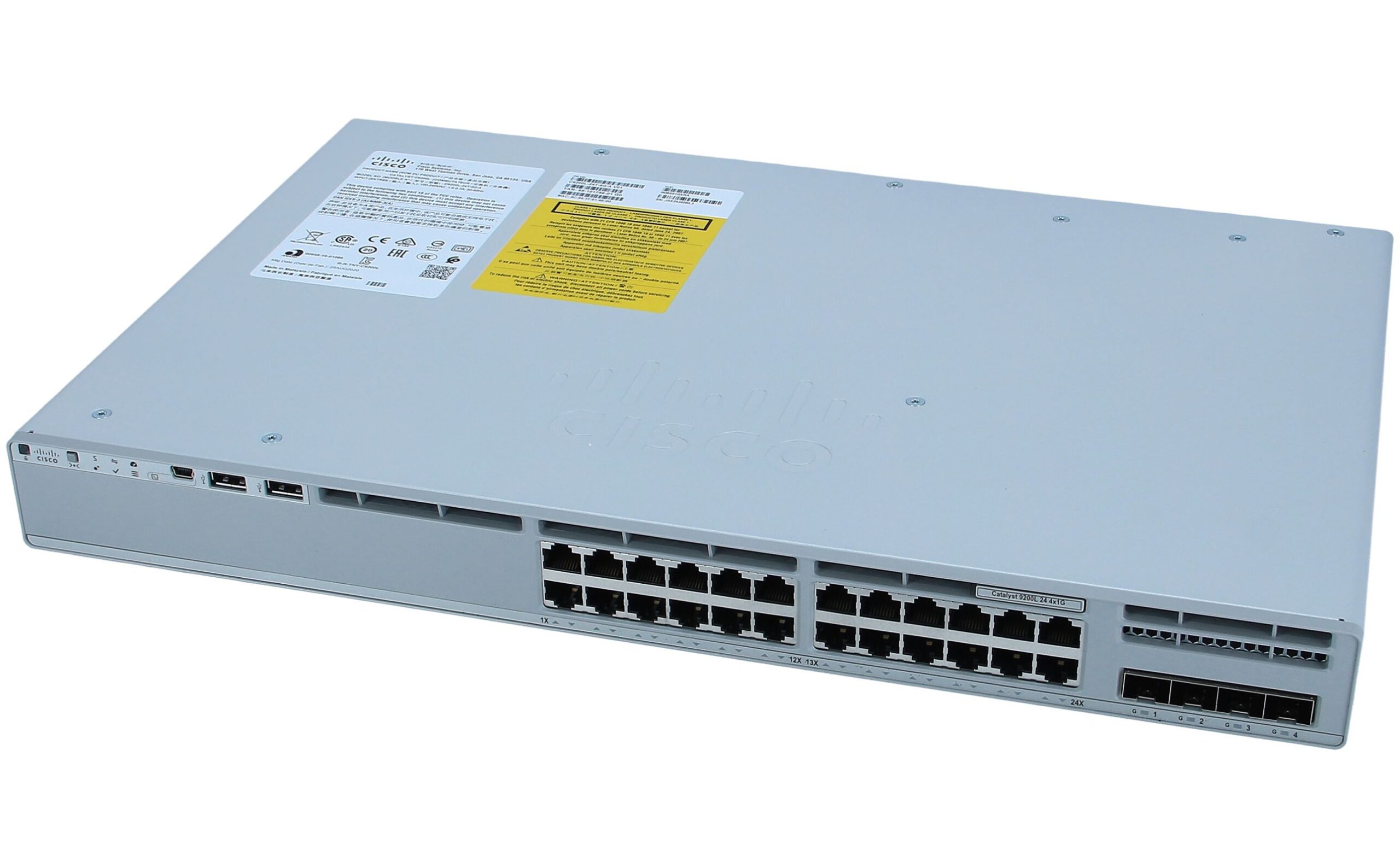

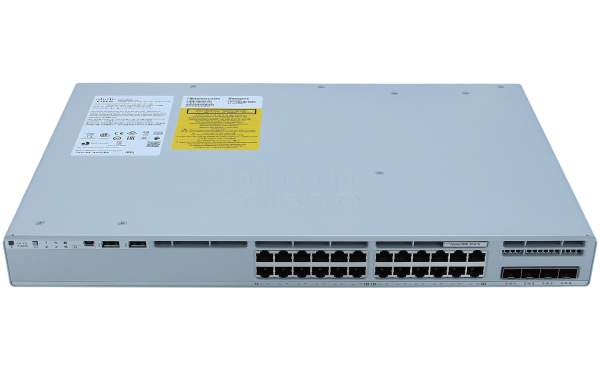

Switch Cisco C9200L-24T-4G-E Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Essentials

El C9200L-24T-4G-E es el switch de enlace ascendente de datos 4x1G de 24 puertos Catalyst 9200L, con software Network Essentials. Los switches Cisco Catalyst 9200 Series extienden la potencia de las redes basadas en intenciones y la innovación de hardware y software Catalyst 9000 a un conjunto más amplio de implementaciones. Con su pedigrí familiar, los switches Catalyst 9200 Series ofrecen simplicidad sin concesiones: son seguros, siempre activos y simplifican la TI.

Especificaciones rápidas
La Tabla 1 muestra las especificaciones rápidas.

Product Details

Catalyst 9200 series provides these highlights:

• ● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
• ● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
• ● Flexible downlink options with data or PoE+
• ● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• ● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• ● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
• ● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• ● Advanced network monitoring using Full Flexible NetFlow
• ● Cisco Software-Defined Access (SD-Access)
• ● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
• ● Network assurance and improved resolution time through Cisco DNA Center
• ● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
• ● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
• ● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Supported Products

Table 2 shows the recommended supported products.
