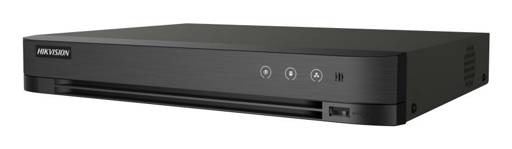

DVR Hikvision IDS-7208HQHI-M1/XT 8CH, H.265+, AcuSense, 1080p, 1U

DVR Hikvision IDS-7208HQHI-M1/XT 8CH, H.265+, AcuSense, 1080p, 1U

Grabación inteligente con IA para seguridad profesional.

El DVR Hikvision IDS-7208HQHI-M1/XT ofrece una solución avanzada de videovigilancia con 8 canales de entrada analógica y soporte para hasta 12 cámaras IP. Equipado con la tecnología AcuSense basada en algoritmos de aprendizaje profundo, permite reconocimiento facial en 2 canales o protección perimetral en 4 canales, reduciendo significativamente las falsas alarmas. Su capacidad de compresión H.265+ optimiza el almacenamiento sin comprometer la calidad de imagen, y su diseño compacto de 1U facilita la instalación en diversos entornos.

Características técnicas

Este DVR es ideal para sistemas de seguridad que requieren análisis inteligente de video y eficiencia en el almacenamiento. Su compatibilidad con múltiples formatos de video y cámaras IP lo hace versátil para diversas aplicaciones de videovigilancia.

Facial Recognition

• Face Picture LibraryUp to 16 face picture libraries
• Face Picture Comparison (Captured from Camera)Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)

Detección de movimiento 2.0

• Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Protección perimetral

• Human/Vehicle Analysis

Up to 4-ch

Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.

Video and Audio

• Entrada de vídeo IP4-ch (up to 12-ch), Up to 6 MP resolution
• Entrada de video analógico

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• CVBS InputPAL/NTSC
• HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

• VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

• CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

• Entrada de Audio

1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.

• Salida de audio1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Reproducción síncrona8-ch

Recording

• Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Resolución de codificación

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Vídeo bitrate32 Kbps to 6 Mbps
• Doble flujoSupport main stream or sub stream
• Stream TypeVideo, Video & Audio
• Compresión de audioG.711u
• Audio Bitrate64 Kbps

Red

• Conexión remota64
• Total Bandwidth96 Mbps
• Protocolo de redTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Interfaz de red1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• Interfaz de serieRS-485 (half-duplex)
• SATA1 SATA interface, up to 10 TB capacity for each disk
• Alarma E/SN/A (optional to support)
• Interfaz USB

Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 2.0

General

• Fuente de alimentación12 VDC, 1.5 A
• Consumo≤ 18 W (without HDD)
• Temperatura de trabajo-10 °C to + 55 °C (14 °F to 131 °F)
• Condiciones de Humedad10% to 90%
• Dimensión (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
• ≤ 1.78 kg (3.9 lb) (without HDD)
