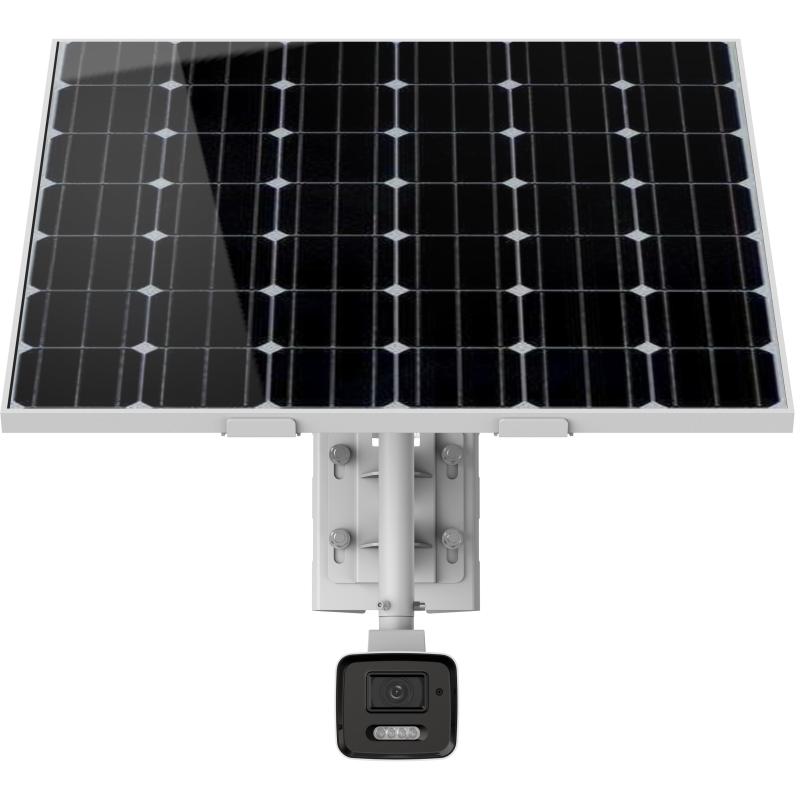

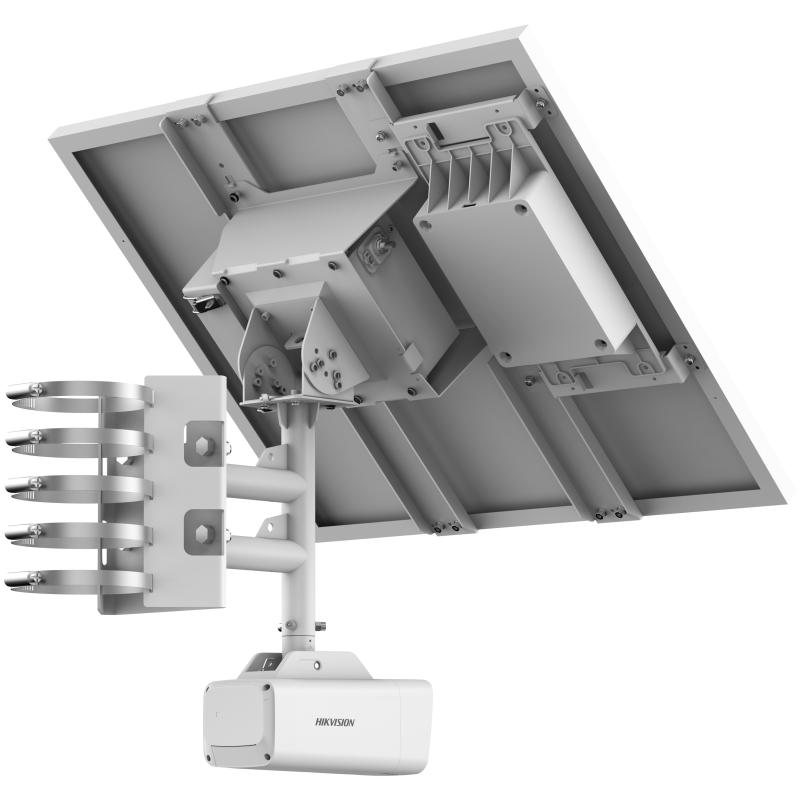

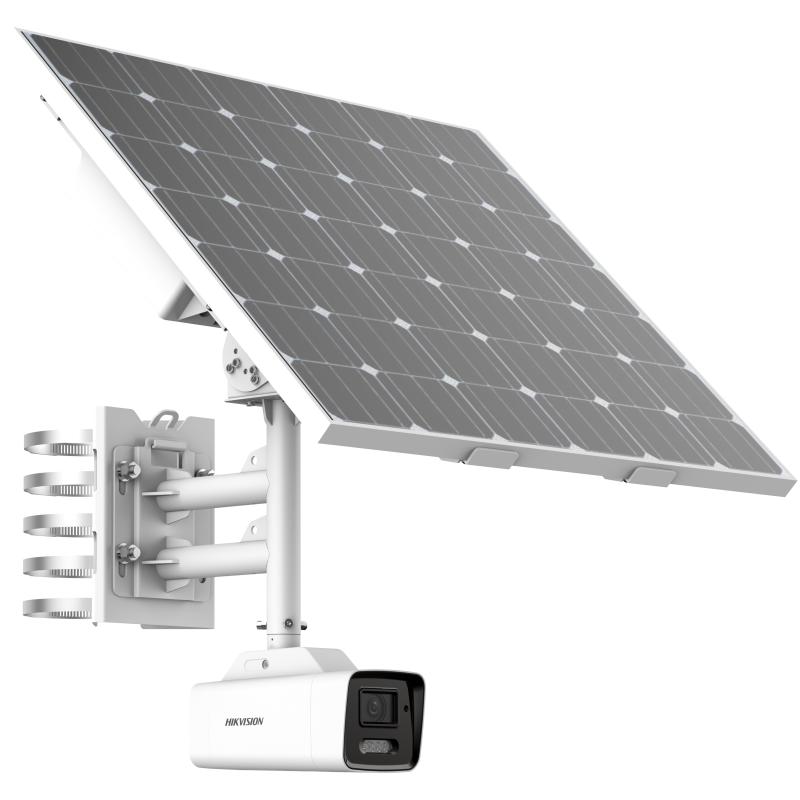

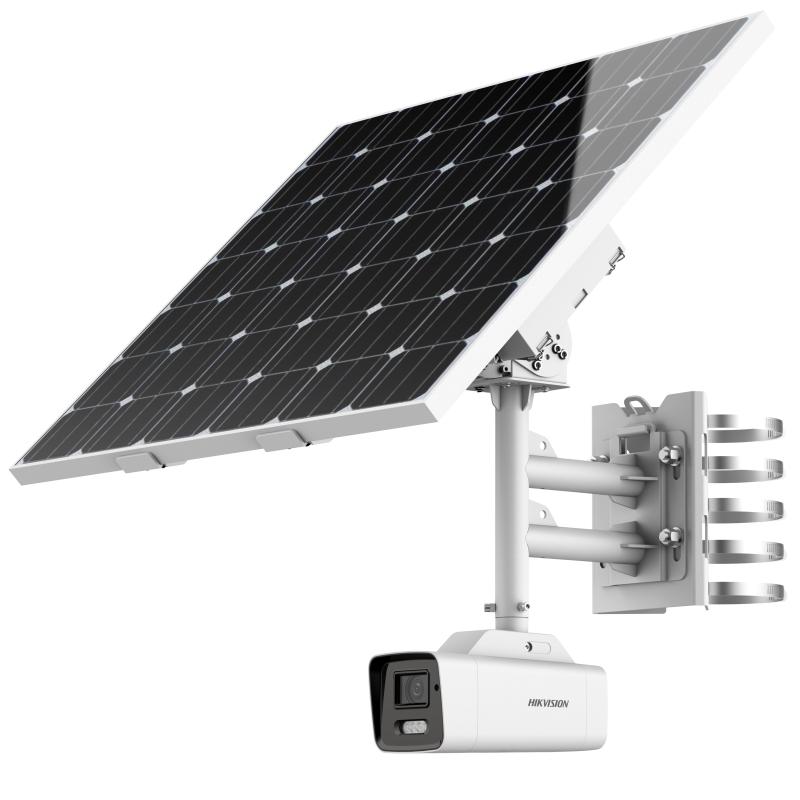

Cámara IP tipo Bala 4MP VF 2.8-12mm WDR Energia Solar Bateria 4G IP66

• Panel fotovoltaico de 80 W, batería de litio recargable de 360 ​​Wh
• Imágenes nítidas incluso con luz de fondo intensa gracias a la tecnología WDR real de 120 dB
• Centrarse en la clasificación de objetivos humanos y de vehículos basada en el aprendizaje profundo
• Admite administración de batería, visualización de batería, protección de temperatura alta y baja de batería, protección de carga y descarga, protección de suspensión por batería baja y activación remota.
• Transmisión de red inalámbrica LTE-TDD/LTE-FDD/WCDMA/GSM 4G, compatible con tarjeta Micro SIM
• Resistente al agua y al polvo (IP66)
• Almacenamiento eMMC o SSD de alta capacidad integrado

Cámara

• Sensor de imagen1/1.8" Progressive Scan CMOS
• Max. Resolución2560 × 1440
• Iluminación mínimaColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
• Tiempo de obturación1 s to 1/100,000 s

Lente

• Focal Length & FOV

2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°

8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°

• LenteAuto, Semi-auto, Manual
• Iris TypeAuto-iris
• Apertura2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
• Montura del lenteAll In One Lens

DORI

• DORI

2.8 to 12 mm:

Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

8 to 32 mm:

Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m

Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Iluminador

• Tipo de luz suplementariaIR
• Rango de luz suplementaria

2.8 to 12 mm: Up to 30 m

8 to 32 mm: Up to 50 m

• Luz de suplemento inteligenteYes

Vídeo

• Main stream

Performance mode:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Proactive mode:

50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-stream

Performance mode:

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Proactive mode:

50 Hz: 12.5 fps (640 × 480, 640 × 360)

60 Hz: 15 fps (640 × 480, 640 × 360)

• Third Stream

50 Hz: 1 fps (1280 × 720, 640 × 480)

60 Hz: 1 fps (1280 × 720, 640 × 480)

• Compresión de video

Main stream: H.264/H.265

Sub-stream: H.264/H.265/MJPEG

Third Stream: H.265/H.264

*Performance mode: main stream supports H.264+, H.265+

• Vídeo bitrate32 Kbps to 8 Mbps
• Tipo H.264Baseline Profile,Main Profile,High Profile
• Tipo H.265Main Profile
• Bit Rate ControlCBR/VBR
• Codificación de video escalable (SVC)H.264 and H.265 encoding
• Región de interés (ROI)4 fixed regions for main stream

Audio

• Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Velocidad de bits de audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Filtro de ruido ambientalYes

Red

• Vista en vivo simultáneaUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
• ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Usuario/operador

Up to 32 users

3 user levels: administrator, operator, and user

• SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
• Almacenamiento en red

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClienteHik-Connect (proactive mode also supports), Hik-central Professional
• Navegador web

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• SIM Card TypeMicroSIM
• Frecuencia

DS-2XS6A46G1-IZS/C36S80:

LTE-TDD: Band38/40/41

LTE-FDD: Band1/3/5/7/8/20/28

WCDMA: Band1/5/8

GSM: 850/900/1800 MHz

DS-2XS6A46G1-IZS/C36S80(US):

LTE-FDD: Band2/4/5/12/13/66/71

WCDMA: Band2/4/5

DS-2XS6A46G1-IZS/C36S80(LA):

LTE-TDD: Band38/40

LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66

WCDMA: Band1/2/3/4/5/8

GSM: 850/900/1800/1900 MHz

DS-2XS6A46G1-IZS/C36S80(JP):

LTE-TDD: Band41

LTE-FDD: Band1/3/8/11/18/19/21/26/28

WCDMA: Band1/6/8/19

• Estándar

DS-2XS6A46G1-IZS/C36S80: LTE-TDD/LTE-FDD/WCDMA/GSM

DS-2XS6A46G1-IZS/C36S80 (US): LTE-FDD/WCDMA

DS-2XS6A46G1-IZS/C36S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

DS-2XS6A46G1-IZS/C36S80 (JP): LTE-TDD/LTE-FDD/WCDMA

Imagen

• Wide Dynamic Range (WDR)120 dB
• Interruptor día/nocheDay, Night, Auto, Schedule
• Mejora de la imagenBLC, HLC, 3D DNR, Defog
• Interruptor de parámetros de imagenYes
• Configuración de imagenSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• SNR≥ 52 dB
• Máscara de privacidad4 programmable polygon privacy masks

Interfaz

• Audio

1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarma1 input, 1 output (max. 12 VDC, 1 A)
• On-Board Storage

Built-in memory card slot, support microSD card, up to 256 GB,

Built-in 256 GB eMMC storage (256 GB device model supports),

Built-in 512 GB SSD storage (512 GB device model supports),

Built-in 1 TB SSD storage (1 TB device model supports)

• Reset KeyYes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Salida de alimentación12 VDC, max. 1000 mA

Evento

• Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
• Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

General

• alimentación

12 VDC ± 20%, 4-pin M8 waterproof connector

1 TB/512 GB device model:

1. Standby power consumption: 45 mW

2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W

3. The max. power consumption: 20 W (6 W if without 12 V load)

Other device model:

1. Standby power consumption: 45 mW

2. The average power consumption of 24 hours (4G transmission is excluded): 3 W

3. The max. power consumption: 18 W (6 W if without 12 V load)

• MaterialFront cover: metal, body: metal, bracket: metal
• Dimensión816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)
• Dimensión del paquete862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
• Approx. 26.450 kg (58.3 lb.)
• Con peso del paqueteApprox. 32.715 kg (72.1 lb.)
• Condiciones de almacenaje-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Función generalAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

batería

• Tipo de bateríaLithium
• Capacidad360 Wh (90 Wh for each battery)
• Voltaje de la batería10.8 V
• Max. Output Voltage12.6 V
• Temperatura de funcionamiento

Charging: -20 °C to 45 °C (-4 °F to 113 °F)

Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

• Vida de bateríaMore than 500 cycles
• Ciclo de vida

Proactive mode: 5 days, Standby mode: 80 days

*in cloudy/rainy days (25 °C)

• Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Certificaciones

• EMC

CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);

RCM (AS/NZS CISPR 32: 2015);

IC (ICES-003: Issue 7)

• RF

CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

ICASA: same as CE-RED;

IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

• Seguridad

CB (IEC 62368-1:2014+A11)

CE-LVD/UKCA (EN 62368-1:2014/A11:2017)

LOA (IEC/EN 60950-1)

• Ambiente

CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

• Protección

Camera: IP66 (IEC 60529-2013)

Wind resistance 12 level, up to 40 m/s wind speed resistance
