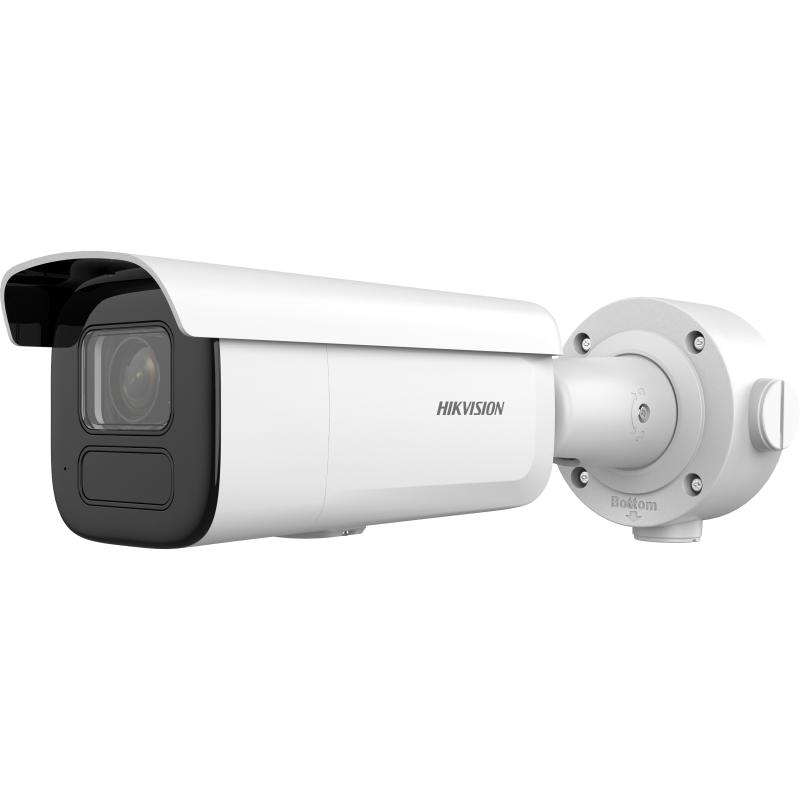

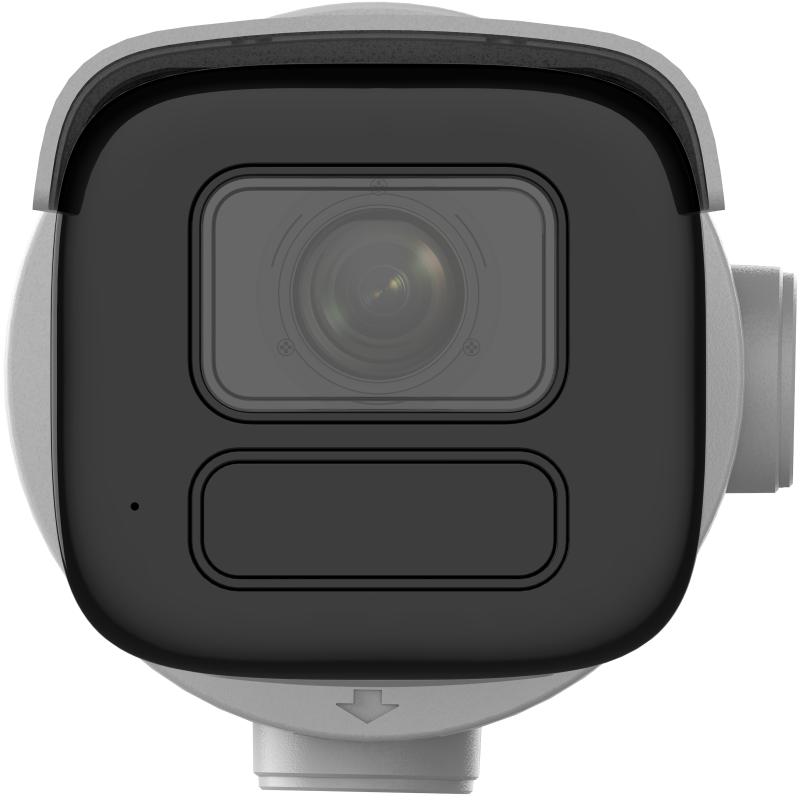

Cámara IP tipo Bala 6MP 2.7-13.5mm IR 60mt IP67 IK10 WDR POE+ AcuSense

• Admite Hikvision Embedded Open Platform (HEOP) y la importación de aplicaciones de terceros
• Admite potencia de procesamiento de 1,5 Tops, 40 MB de memoria del sistema, 350 MB de RAM inteligente y 2 GB de almacenamiento eMMC para compartir recursos.
• Imágenes de alta calidad con una resolución de 6 MP
• Excelente rendimiento con poca luz gracias a la tecnología DarkFighter
• Imágenes nítidas incluso con luz de fondo intensa gracias a la tecnología WDR real de 120 dB
• Tecnología de compresión H.265+ eficiente
• Reducción de falsas alarmas mediante la clasificación de objetivos humanos y vehiculares basada en aprendizaje profundo
• Interfaz de audio y alarma disponible
• La tecnología 3D DNR ofrece imágenes limpias y nítidas
• Lente varifocal motorizada para una fácil instalación
• Resistente al agua y al polvo (IP67) y al vandalismo (IK10)

Cámara

• Sensor de imagen1/2.4" Progressive Scan CMOS
• Max. Resolución3200 × 1800
• Iluminación mínimaColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Tiempo de obturación1/3 s to 1/100,000 s
• Día y NocheIR cut filter
• Ajuste de ánguloPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lente

• LenteVarifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional
• Focal Length & FOV

2.7 to 13.5 mm: horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°

7 to 35 mm: horizontal FOV 34.4° to 12.5°, vertical FOV 19° to 7.1°, diagonal FOV 39.8° to 14.3°

• Montura del lente2.7 to 13.5 mm: Ø14; 7 to 35 mm: Integrated
• EnfoqueAuto,Semi-auto,Manual
• Iris TypeAuto-iris
• Apertura2.7 to 13.5 mm: F1.6; 7 to 35 mm: F1.6

DORI

• DORI

2.7 to 13.5 mm: D: 68 to 200 m, O: 27 to 79 m, R: 13 to 40 m, I: 6 to 20 m

• to 35 mm: D: 218 to 580 m, O: 86 to 230 m, R: 43 to 116 m, I: 21 to 58 m

Iluminador

• Tipo de luz suplementariaIR
• Rango de luz suplementaria2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m
• Luz de suplemento inteligenteYes
• IR Wavelength850 nm

HEOP

• Open Resources

Memory: 40 MB,

Smart RAM: 350 MB,

eMMC: 2 GB

• Computing Power1.5 TOPS
• Open CapabilityHEOP 2.0 OpendevSDK
• Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
• Programming LanguageC,C++

Vídeo

• Main stream

50 Hz:

20 fps (3200 × 1800)

25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800)

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Fourth Stream

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

• Compresión de video

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG

• Vídeo bitrate32 Kbps to 16 Mbps
• Tipo H.264Baseline Profile,Main Profile,High Profile
• Tipo H.265Main Profile
• Bit Rate ControlCBR,VBR
• Codificación de video escalable (SVC)H.264 and H.265 encoding
• Región de interés (ROI)5 fixed regions for main stream and sub-stream
• Recorte objetivoYes

Audio

• Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Velocidad de bits de audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Filtro de ruido ambientalYes

Red

• ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
• Vista en vivo simultáneaUp to 6 channels
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Usuario/operador

Up to 32 users

3 user levels: administrator, operator, and user

• SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Almacenamiento en red

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClienteiVMS-4200,Hik-Connect,Hik-Central
• Navegador web

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen

• Interruptor de parámetros de imagenYes
• Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Interruptor día/nocheDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• Mejora de la imagenBLC,HLC,3D DNR,Defog
• SNR≥ 52 dB
• Máscara de privacidad4 programmable polygon privacy masks

Interfaz

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarma2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes
• Salida de alimentación12 VDC, max. 100 mA

Evento

• Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Evento inteligentescene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function

• Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

• Captura de la caraYes
• Conteo de personasYes

General

• alimentación

12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3at, Class 4, max. 15 W

• MaterialAluminum alloy body
• DimensiónØ105 mm × 332.8 mm (Ø4.1" × 13.1")
• Dimensión del paquete385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• Approx. 1475 g (2.9 lb.)
• Con peso del paqueteApprox. 2276 g (4.8 lb.)
• Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Función generalHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
• Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones

• EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

• Seguridad

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1

• Ambiente

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

• ProtecciónIP67: IEC 60529-2013,IK10: IEC 62262:2002
• Protección anticorrosiva-Y: NEMA 4X (NEMA 250-2018)
