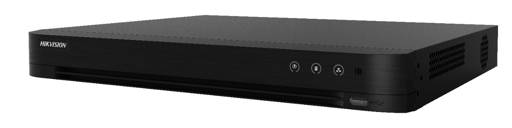

Grabador DVR de 4 Canales AcuSense Hikvision, Standalone DVR, iDS-7204HQHI-M1S
Descripción
| Desempeño | |
|---|---|
| Color del producto | Negro |
| Máxima resolución de video | 1920 x 1080 Pixeles |
| Formatos de compresión de video | H.264, H.264+, H.265, H.265 Pro, H.265 Pro+ |
| Resoluciones de reproducción soportadas | 1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576 |
| Cantidad de canales | 4 canales |
| Señal analógica | NTSC, PAL |
| Sistema de audio | De 2 vías |
| Puertos e Interfaces | |
|---|---|
| Canales de entrada de vídeo | 4 canales |
| Número de puertos HDMI | 1 |
| Puertos de salida VGA (D-Sub) | 1 |
| Entrada de audio | RCA |
| Salida de audio | RCA |
| Cantidad de puertos USB 2.0 | 2 |
| Puertos RS-485 | 1 |
| Conexión | |
|---|---|
| Ethernet | Si |
| Tipo de interfaz ethernet | Ethernet rápido |
| Ethernet LAN (RJ-45) cantidad de puertos | 1 |
| Protocolos de red compatibles | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Disco duro | |
|---|---|
| Número de HDDs soportados | 1 |
| Interfaz del HDD | SATA, Serial ATA II, Serial ATA III |
| Capacidad máxima del HDD | 10 TB |
| Control de energía | |
|---|---|
| Tensión CC | 12 V |
| Consumo energético | 18 W |
| Peso y dimensiones | |
|---|---|
| Ancho | 315 mm |
| Profundidad | 242 mm |
| Altura | 45 mm |
| Peso | 1,16 kg |
| Condiciones ambientales | |
|---|---|
| Intervalo de temperatura operativa | -10 - 55 °C |
| Intervalo de humedad relativa para funcionamiento | 10 - 90% |
Se adjunta ficha tecnica
DETECCIÓN DE MOVIMIENTO
- Detección de movimiento 2.0
- Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
PROTECCIÓN PERIMETRAL
- Human/Vehicle AnalysisUp to 2-ch
DETECCIÓN FACIAL
- Facial Detection and CaptureFace picture detection, face picture search
VIDEO Y AUDIO
- Entrada de vídeo IP1-ch (up to 5-ch）Up to 6 MP resolutionEnhanced IP mode on:2-ch (up to 6-ch), each up to 4 MbpsSupport H.265+/H.265/H.264+/H.264 IP cameras
- Entrada de video analógico4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
- Reproducción síncrona4-ch
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Salida de audio1-ch, RCA (Linear, 1 KΩ)
- Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
GRABACIÓN
- Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución de codificaciónWhen 1080p Lite mode is not enabled:3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode is enabled:3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame RateMain stream:When 1080p Lite mode not enabled:For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Vídeo bitrate32 Kbps to 6 Mbps
- Doble flujoSupport
- Stream TypeVideo, Video & Audio
- Compresión de audioG.711u
- Audio Bitrate64 Kbps
RED
- Total Bandwidth72 Mbps
- Protocolo de redTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Conexión remota32
- Interfaz de red1, RJ45 10M/100M self-adaptive Ethernet interface
INTERFAZ AUXILIAR
- SATA1 SATA interface
- CapacidadUp to 10 TB capacity for each disk
- Interfaz de serieRS-485 (half-duplex)
- Interfaz USB2 × USB 2.0
- Alarma E/SN/A
GENERAL
- Fuente de alimentación12 VDC, 1.5A
- Consumo≤ 18 W
- Temperatura de trabajo-10 °C to +55 °C (+14 °F to +131 °F)
- Condiciones de Humedad10% to 90%
- Dimensión (W × D × H)319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)
- ≤ 1.16 kg (2.6 lb)
