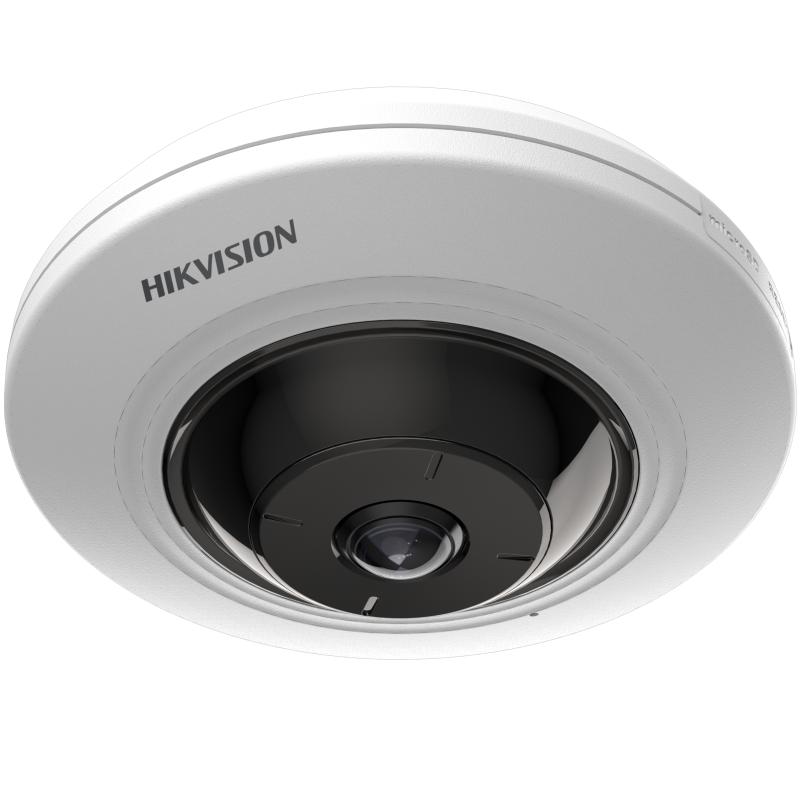

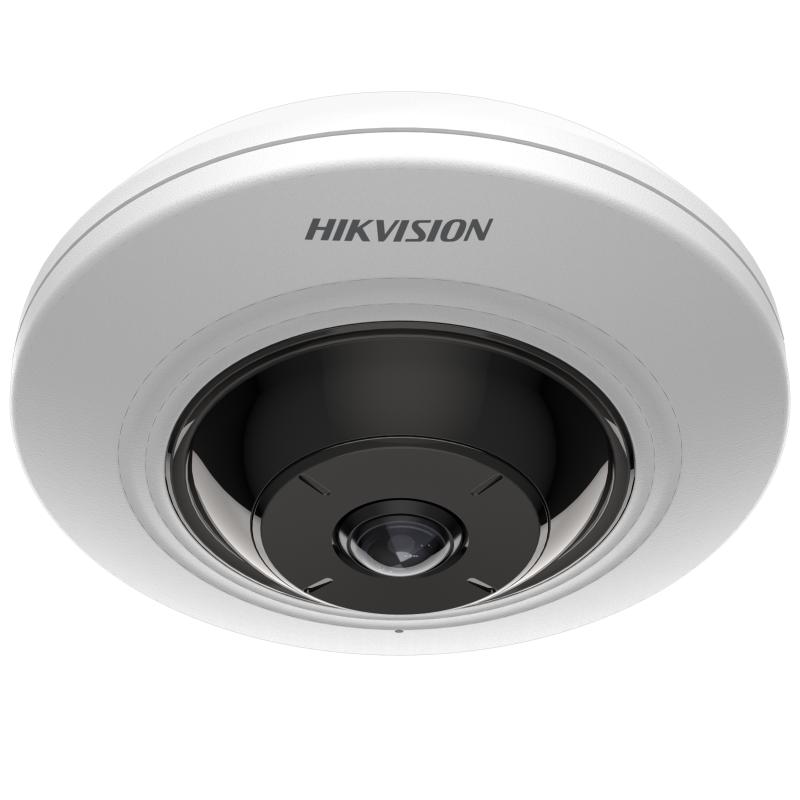

Cámara IP Ojo de Pez 5MP 180ø/360ø IR 8mt Interior POE WDR Alarm I/O

• Imágenes de alta calidad con una resolución de 5 MP
• Tecnología de compresión H.265+ eficiente
• vista de ojo de pez de 180°
• Imágenes nítidas incluso con luz de fondo intensa gracias a la tecnología WDR real de 120 dB
• Interfaz de audio y alarma disponible

Cámara

• Sensor de imagen1/2.7" Progressive Scan CMOS
• Max. Resolución2560 × 1920
• Iluminación mínimaColor: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
• Tiempo de obturación1/3 s to 1/100,000 s
• Día y NocheIR cut filter

Lente

• LenteFixed focal lens, 1.05 mm
• Focal Length & FOV1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
• EnfoqueFixed
• Montura del lenteM12
• Iris TypeFixed
• AperturaF2.25
• Depth of Field0.1 m to ∞

DORI

• DORID: 21 m, O: 8 m, R: 4 m, I: 2 m

Iluminador

• Tipo de luz suplementariaIR
• Rango de luz suplementariaUp to 8 m
• Luz de suplemento inteligenteYes
• IR Wavelength850 nm

Vídeo

• Main stream

50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

• Sub-stream

50 Hz: 25 fps (640 × 480)

60 Hz: 30 fps (640 × 480)

• Compresión de video

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

• Vídeo bitrate32 Kbps to 16 Mbps
• Tipo H.264Baseline Profile,Main Profile,High Profile
• Tipo H.265Main Profile
• Región de interés (ROI)1 fixed region for main stream

Fisheye Display

• Tipo de montajeSupport wall/table/ceiling mounting
• Modo de visualización

Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Audio

• Tipo de audioMono sound
• Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Velocidad de bits de audio64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
• Frecuencia de muestreo de audio8 kHz/16 kHz
• Filtro de ruido ambientalYes

Red

• ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Vista en vivo simultáneaUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI
• Usuario/operador

Up to 32 users

3 user levels: administrator, operator, and user

• ClienteiVMS-4200,Hik-Connect,Hik-Central
• SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Navegador web

Plug-in required live view: IE 10+,

Local service: Chrome 57.0+, Firefox 52.0+

• Almacenamiento en redNAS (NFS, SMB/CIFS)

Imagen

• Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser
• Interruptor día/nocheDay,Night,Auto,Schedule
• Mejora de la imagenBLC,3D DNR
• Wide Dynamic Range (WDR)120 dB

Interfaz

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

• Micrófono incorporado-U: Yes
• Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarma1 input, 1 output (max. 12 VDC, 30 A)
• Reset KeyYes
• Salida de alimentación12 VDC, max. 100 mA

Evento

• Evento BásicoMotion detection, video tampering alarm, exception
• Evento inteligente

Line crossing detection, intrusion detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output

General

• alimentación

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W

• MaterialADC12
• DimensiónØ119.9 mm × 41.2 mm (Ø4.7" × 1.6")
• Dimensión del paquete150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
• Approx. 320 g (0.7 lb.)
• Con peso del paqueteApprox. 500 g (1.1 lb.)
• Idioma13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
• Condiciones de almacenaje-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
• Función generalHeartbeat,anti-banding,mirror,password protection

Certificaciones

• EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

• Seguridad

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1

• AmbienteCE-RoHS: 2011/65/EU
