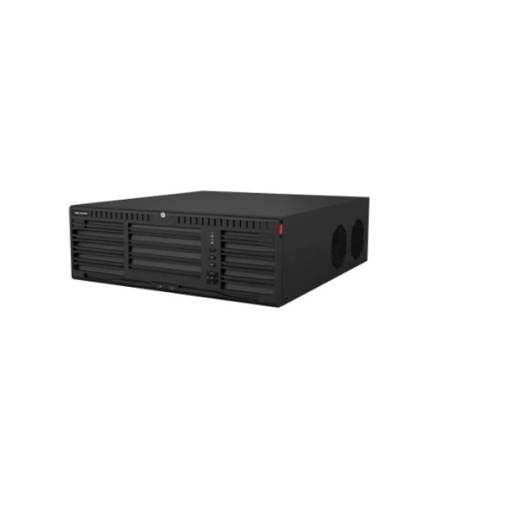

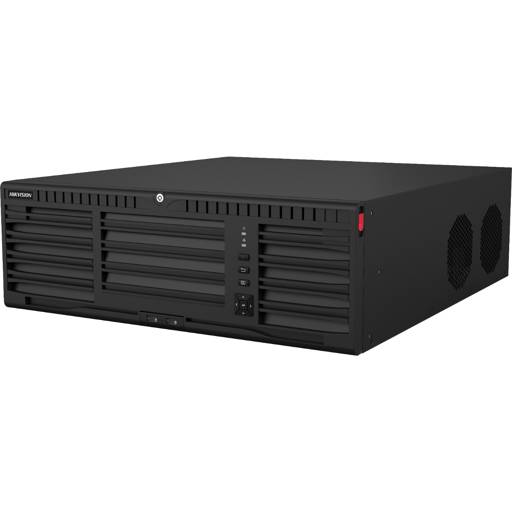

NVR Hikvision de 32Canales, 16 Conectores SATA, 8K Raid c/ Hot Swap AcuSense HDMI 4K

•

• Video Y Audio
• Entrada De Video IP32-ch
• Ancho De Banda Entrante320 Mbps
• Ancho De Banda Saliente400 Mbps
• Salida HDMI 18K ( 7680 × 4320 ) / 30Hz, 4K ( 3840 × 2160 ) / 60Hz, 4K ( 3840 × /30Hz, 1280 × 1024/60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
• Salida HDMI 24K ( 3840 × 2160 ) / 60Hz, 4K ( 3840 × 2160 ) / 30Hz, 2K ( 2560 × /60, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz*: cuando la resolución de salida HDMI 1 es de 8K, la resolución de salida HDMI 2 máxima es de 1080p.
• Salida VGA 11920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
• Salida VGA 21920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
• Modo De Salida De VideoHDMI 1 y VGA 1 proporcionan salida de video simultánea y funcionan como salida principal;HDMI 2 y VGA 2 proporcionan salida de video simultánea y funcionan como salida auxiliar
• Salida CVBS1-ch, BNC ( 1.0 Vp-p, 75 Ω ), resolución: PAL: 704 × 576, NTSC: 704 × 480
• Entrada De Audio1-ch, RCA ( 2.0 Vp-p, 1 KΩ )
• Salida De Audio2-ch, RCA ( Lineal, 1 KΩ )
• Audio Bidireccional1-ch, RCA ( 2.0 Vp-p, 1 k Ω )

• Decodificación
• Formato De DecodificaciónH.265 / H.265 + / H.264 / H.264 +
• Resolución De Grabación32 MP / 24 MP / 12 MP / 8 MP / 7 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
• Reproducción Sincrónica16-ch
• Capacidad De Decodificación2-ch @ 32 MP ( 30 fps ) + 2-ch @ 8MP ? 30fps ? / 10-ch @ 8 MP ( 30 fps ) / 20-ch @ 40
• Compresión De AudioG.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 / PCM

• Red
• Protocolo De RedTCP / IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP ™, HTTP, HTTPS
• Interfaz De Red2, RJ-45 10/100/1000 Mbps interfaz Ethernet autoadaptativa

• RAID
• Tipo RAIDRAID0, RAID1, RAID5, RAID6, RAID10

• Interfaz Auxiliar
• Interfaz Serial1 RS-485 ( full-duplex ), 1 RS-232
• SATA16 interfaces SATA que admiten enchufe en caliente
• ESATA1 interfaz eSATA
• CapacityUp to 16 TB capacity for each disk
• Alarm In/Out16/9
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2× USB 3.0
• Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.
• DC 12V12 VDC, 1 A power output

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 50 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Chassis3U chassis
• Dimension (W × D × H)445 × 496 × 150 mm (17.5" × 19.5" × 5.9")
• Weight≤ 12.5 kg (without HDD, 27.6 lb.)

• Certification
• Obtained CertificationCE, FCC
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Video and Audio

• Entrada de vídeo IP32-ch
• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth400 Mbps
• HDMI 1 Output8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• HDMI 2 Output

4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA 1 Output1920 × 1080/60 Hz
• VGA 2 Output1920 × 1080/60 Hz
• Video Output Mode

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Salida de audio2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Descodificación

• Formato de decodificaciónH.265+/H.265/H.264+/H.264
• Resolución de grabación32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Reproducción síncrona16-ch
• Decodificación2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Compresión de audioG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Red

• Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• Interfaz de red2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access ProtocolONVIF(Version 2.5), RTSP

RAID

• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

• Interfaz de serie1 RS-485 (full-duplex), 1 RS-232
• SATA16 SATA interfaces supporting hot-plug
• eSATA1 eSATA interface
• CapacidadUp to 16 TB capacity for each disk
• Alarma E/S16/9
• Interfaz USBFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
• Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

• DC 12V12 VDC, 1 A power output

General

• Fuente de alimentación100 to 240 VAC, 50 to 60 Hz
• Consumo≤ 50 W (without HDD)
• Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
• Condiciones de Humedad10% to 90%
• Chassis3U chassis
• Dimensión (W × D × H)445 × 496 × 150 mm (17.5" × 19.5" × 5.9")
• ≤ 12.5 kg (without HDD, 27.6 lb.)

Certificación

• Obtained CertificationCE, FCC
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
