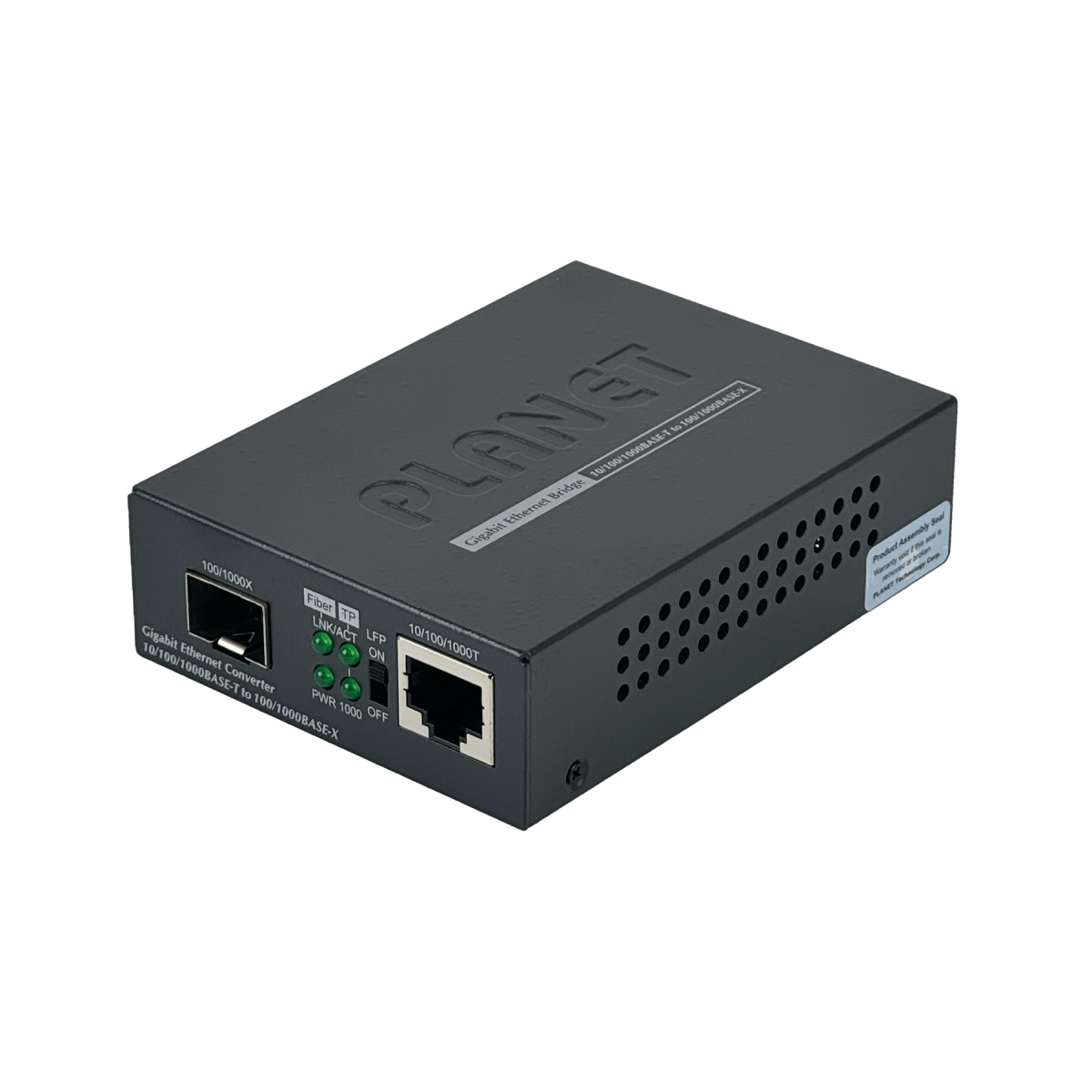

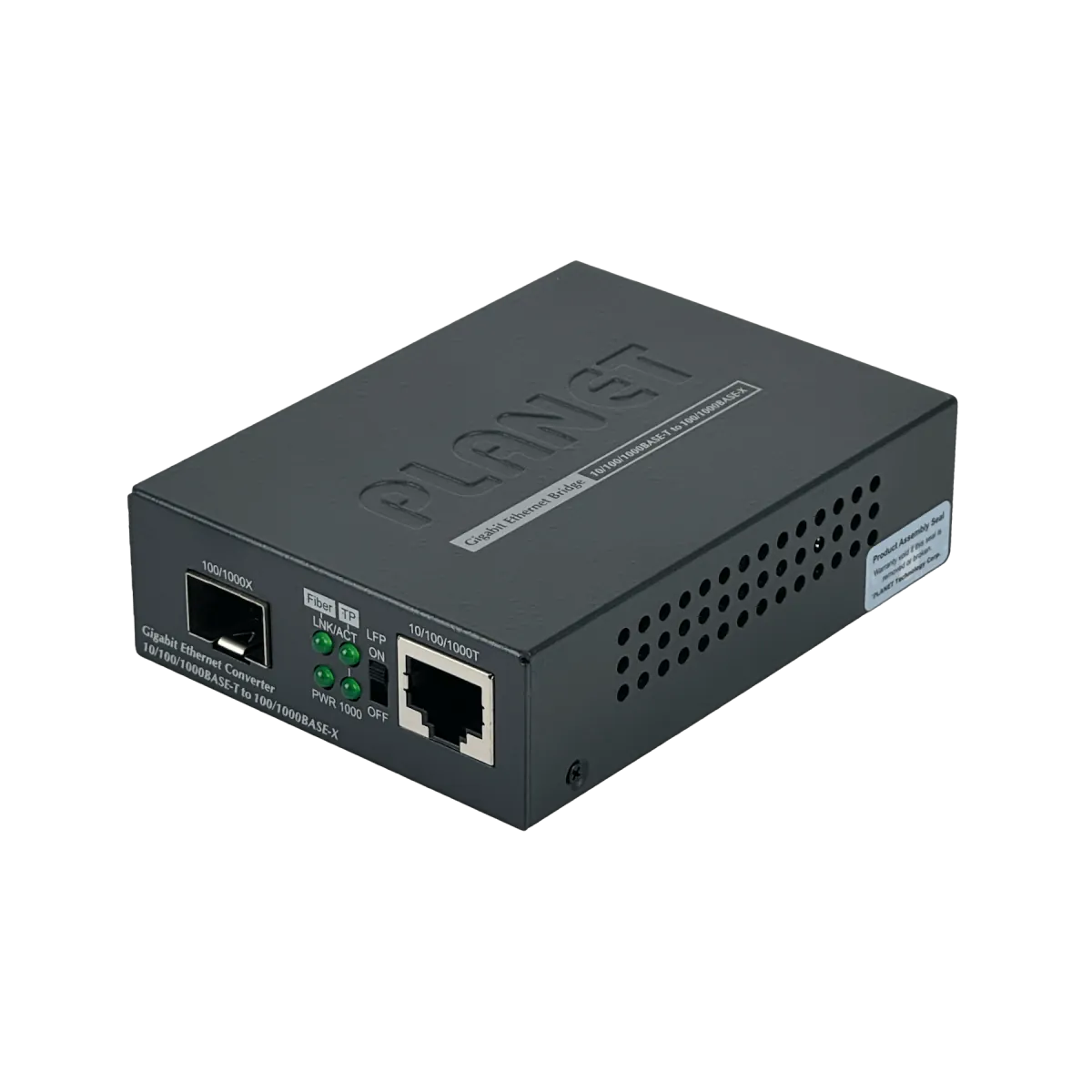

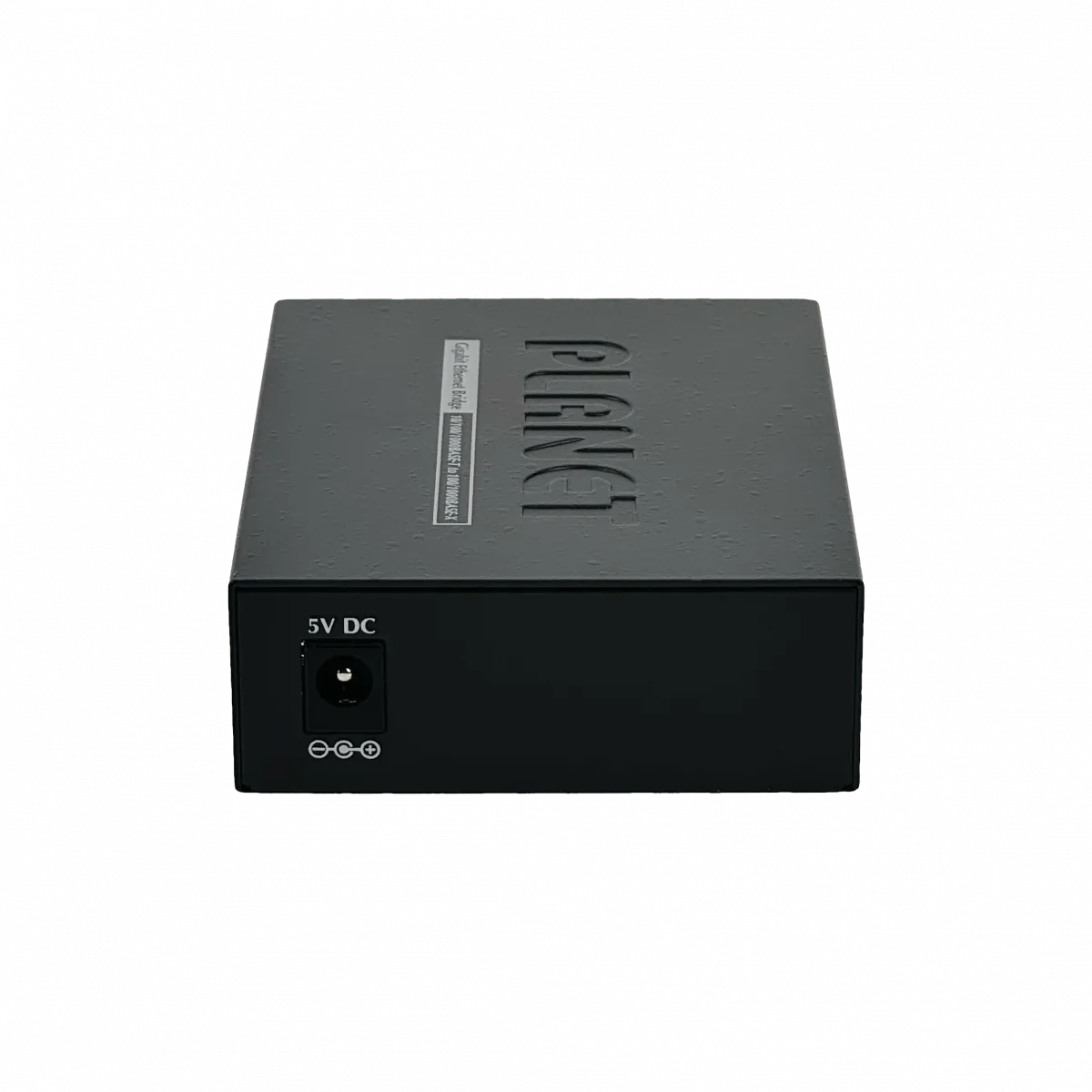

Media Converter Planet 1-1000 1-SFP Gigabit Semi-Admin inc-5VDC/2,5A
Descripción
Se adjunta ficha técnica

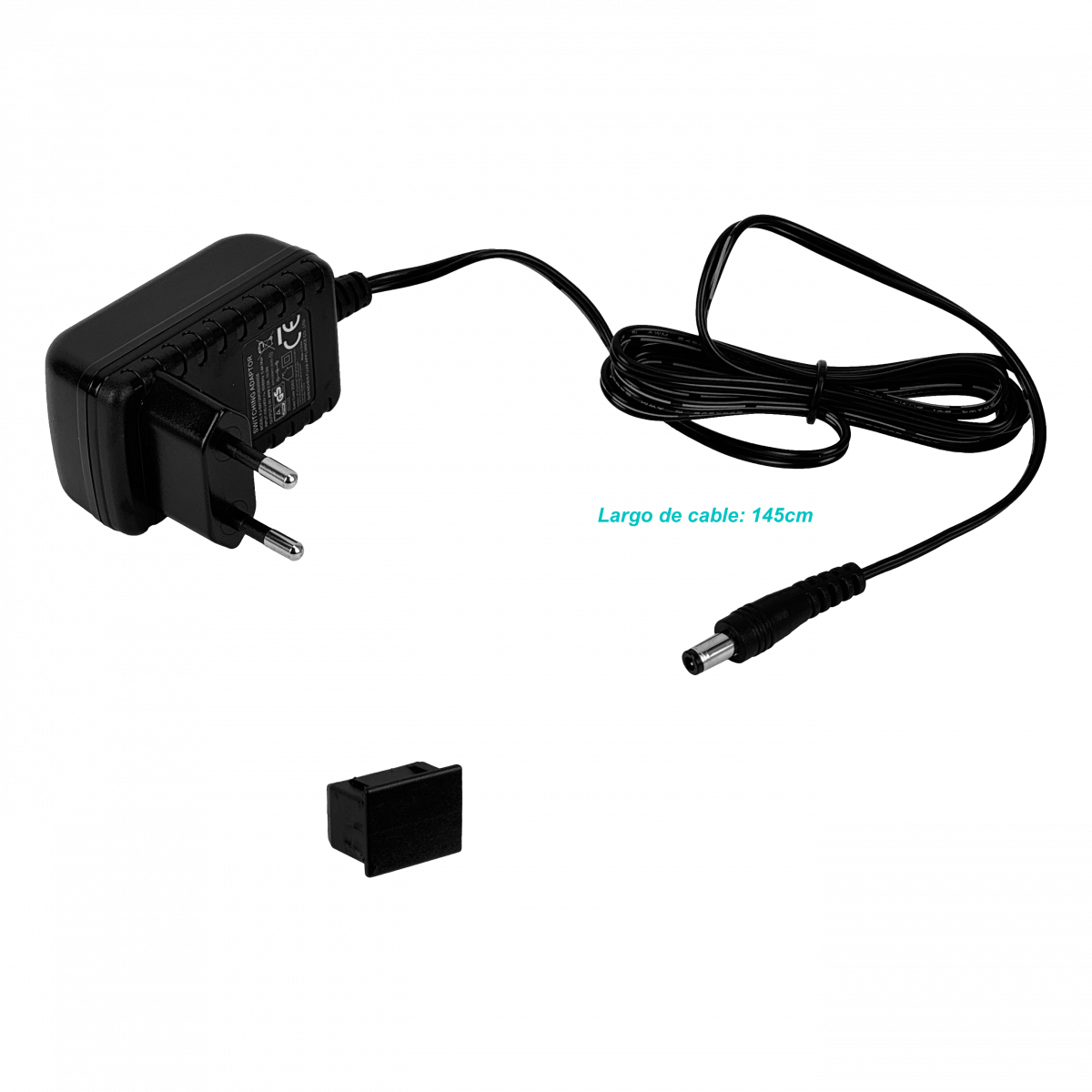

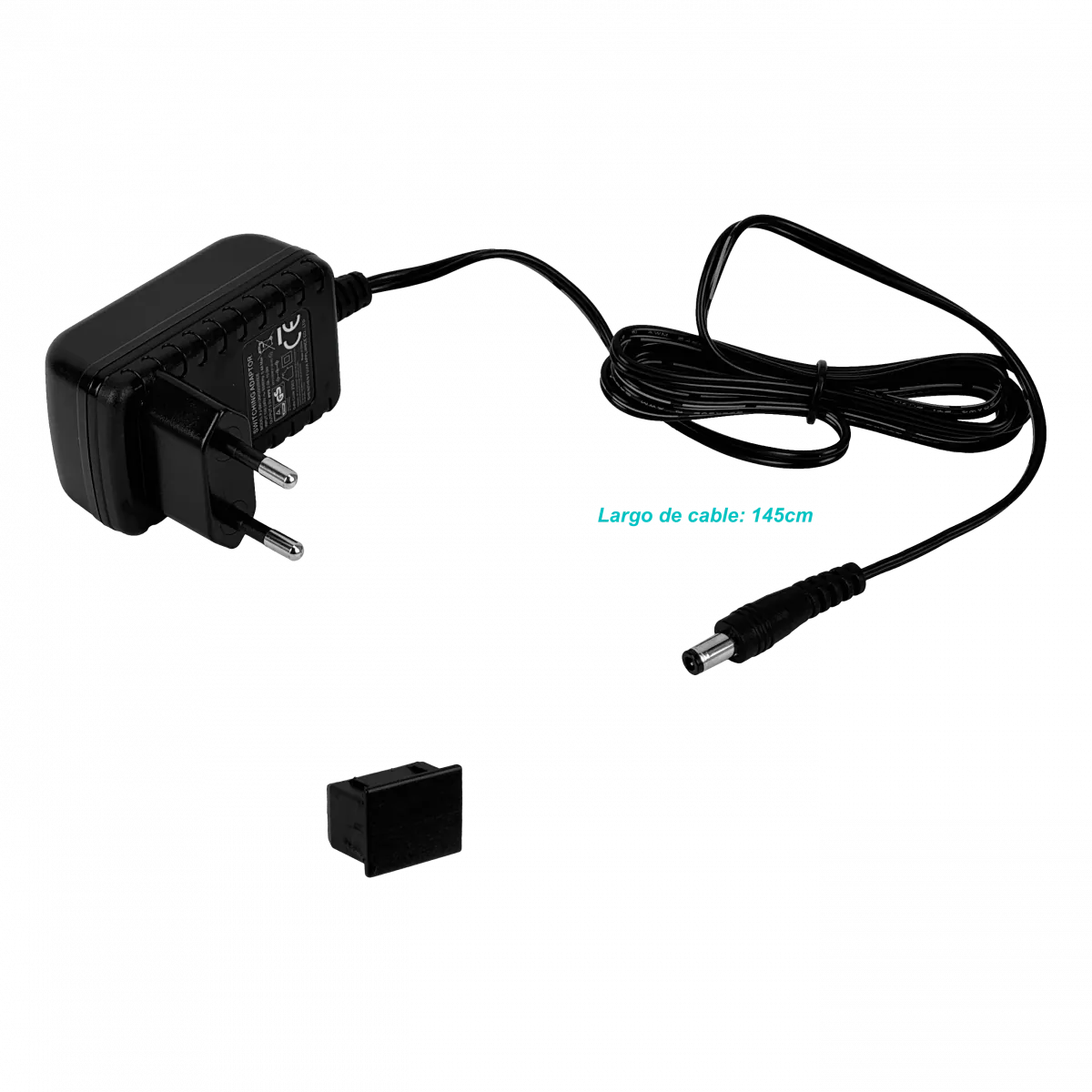

Incluye fuente de Poder
Tensión de entrada: 100-240VAC
Tensión de salida: 5V
Corriente de salida: 2,5A
Tamaño conector Plug: 5,5 x 2,5 x 7mm Largo
| Hardware Specifications | |
|---|---|
| Copper Interface | 10/100/1000BASE-T RJ45 port, Auto-MDI/MDI-X, Twisted-pair |
| Optic Interface | GST-802: 1000BASE-SX Multi-mode, Duplex SC GST-802S: 1000BASE-LX Single mode, Duplex SC GST-805A: 1000BASE-X SFP slot GST-806A15/GST-806B15/GST-806A60/GST-806B60: 1000BASE-BX Single mode, WDM Simplex SC |
| Fiber Maximum Distance | GST-802: 220/550m GST-802S: 20km GST-805A: Varies with SFP module GST-806A15/GST-806B15: 20km GST-806A60/GST-806B60: 60km |
| Optic Wavelength | GST-802: 850nm GST-802S: 1310nm GST-805A: N/A GST-806A15/GST-806A60: TX:1310nm RX:1550nm GST-806B15/GST-806B60: TX:1550nm RX:1310nm |
| Max. Optical Output Power | GST-802: -1.5dBm GST-802S: -2dBm GST-805A: N/A GST-806A15: -2dBm GST-806B15: -2dBm GST-806A60: -3dBm GST-806B60: -3dBm |
| Min. Optical Output Power | GST-802: -9.5dBm GST-802S: -8dBm GST-805A: N/A GST-806A15: -8dBm GST-806B15: -8dBm GST-806A60: -2dBm GST-806A60: -5dBm |
| Receive Sensitivity | GST-802: -17dBm GST-802S: -22dBm GST-805A: NA GST-806A15/GST-806B15: -23dBm GST-806A60/GST-806B60: -26dBm |
| Speed | Twisted-pair 10/20Mbps for Half/Full Duplex 100/200Mbps for Half/Full Duplex 2000Mbps for Full Duplex Fiber-optic 2000Mbps for Full Duplex |
| Cable | Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100BASE-TX: 2-pair UTP Cat. 5, up to 100 m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 9/125μm single-mode cable, provides long distance for 10/20/40/60/80/120km (vary on fiber transceiver or SFP module) |

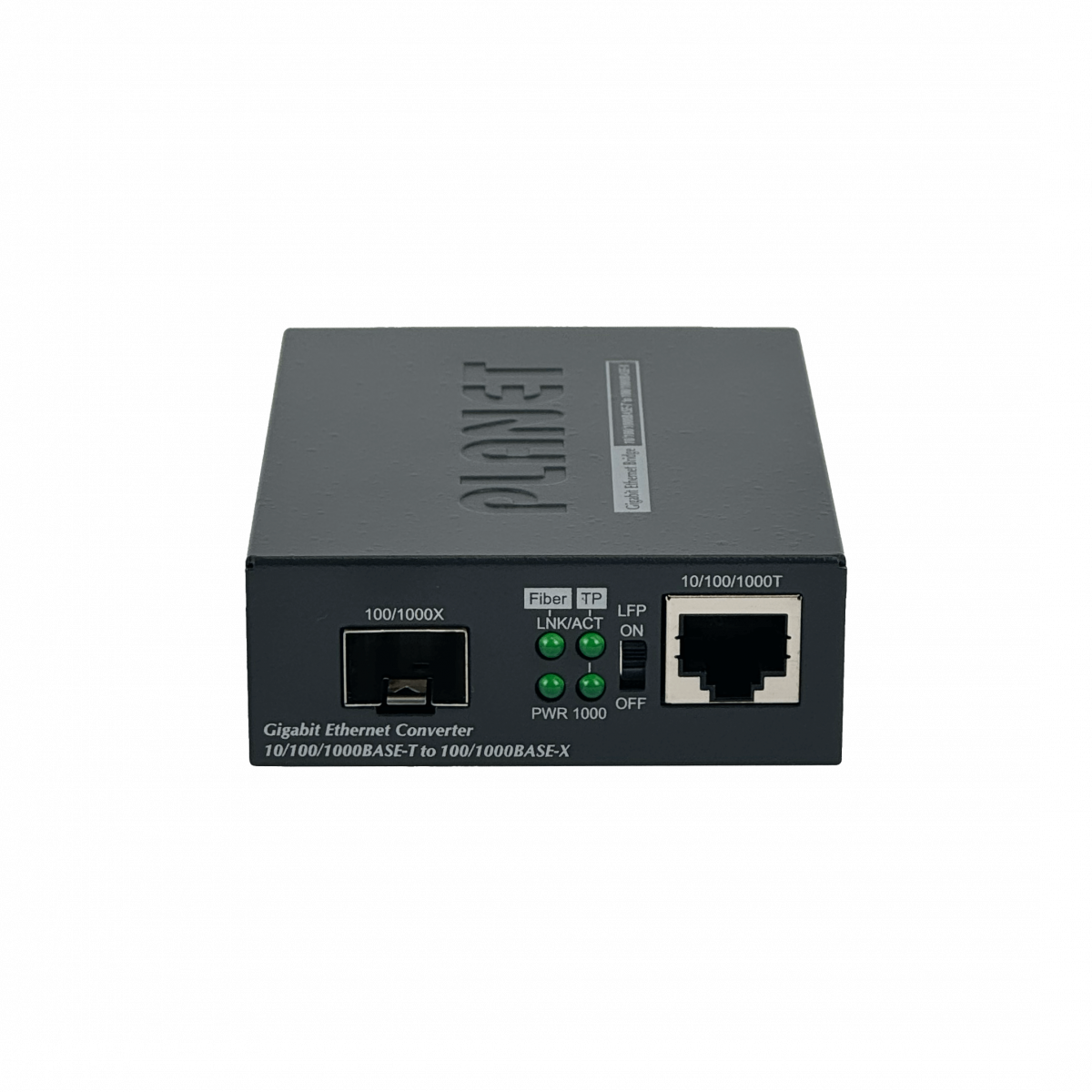

| LED Indicator | PWR (Green) TP : 1000, LINK/ACT(Green) Fiber : LINK/ACT(Green) |
| DIP Switch | Fiber (Auto-negotiation/Manual), LFP (Disable/Enable) |
| Power Consumption | 2.3 watts/7.8BTU (maximum) |
| OAM | TS-1000, IEEE 802.3ah terminal |
| Jumbo Frame size | 16K |

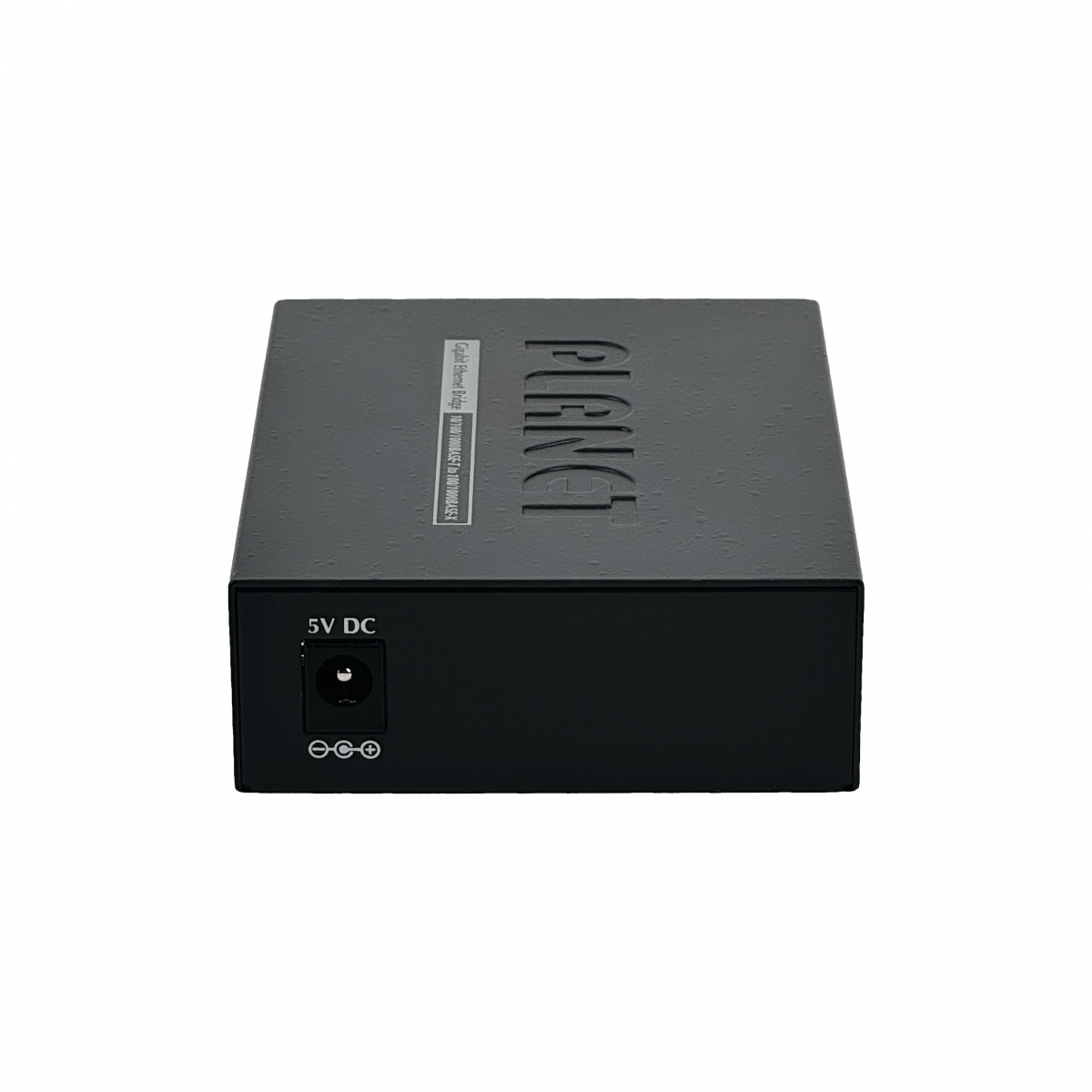

| Power Input | DC 5V/2A |
| Dimensions (W x D x H) | 93.8 x 80.75 x 26.4 mm |
| Weight | 207g |
| Operating Environment | Temperature: 0~50 degrees C Humidity: 5~95% non-condensing |
| Storage Environment | Temperature: -10~70 degrees C Humidity: 5~95% non-condensing |
| Emissions | FCC Class A, CE Class A |
| Standards | IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX IEEE 802.3ab, 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3ah OAM |
