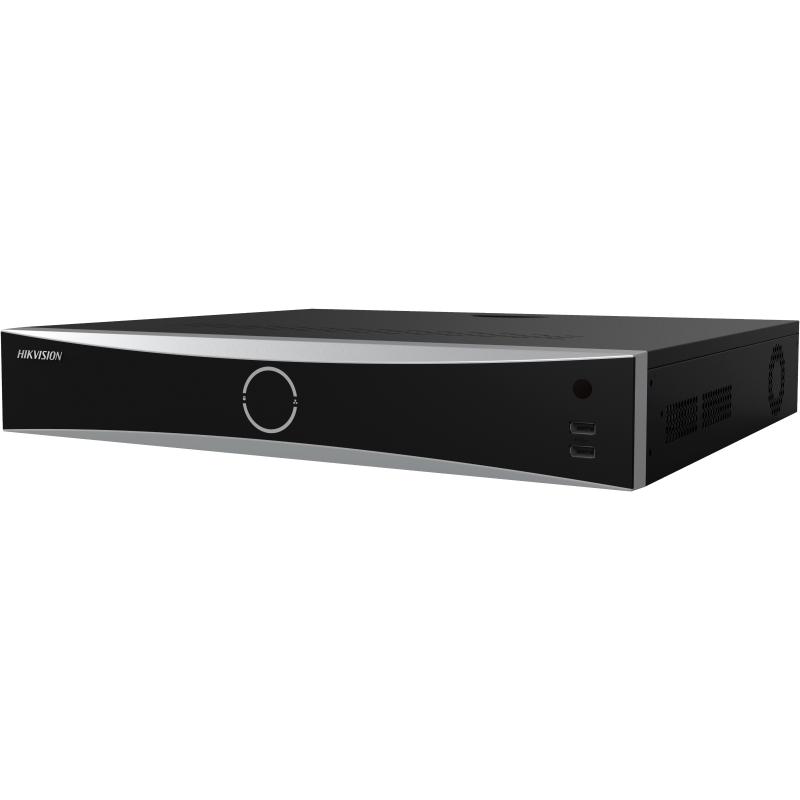

NVR DeepinMind 8K 32CH 4HDD/Facial/Perimetro/AcuSearch/400mb

• Capacidad de decodificación de hasta 2 canales a 32 MP/2 canales a 24 MP/4 canales a 12 MP/8 canales a 8 MP/16 canales a 4 MP/32 canales a 1080p
• Formatos de vídeo H.265+/H.265/H.264+/H.264
• Se pueden conectar hasta 32 cámaras IP
• Análisis inteligente basado en algoritmos de aprendizaje profundo
• Protección perimetral de hasta 24 canales
• Reconocimiento facial de hasta 16 canales para transmisión de video o reconocimiento facial de hasta 32 canales para fotografía de rostro
• Estructuración de vídeo de hasta 12 canales
• Se pueden conectar hasta 8 altavoces IP de canales

Intelligent Analytics

• AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
• AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
• Engine2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
• Face Picture Comparison (Captured from Camera)

32-ch (24-ch for each engine);

Comparison speed: 48 pictures per second

• Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP

AcuSearch

• By Camera

All channels ,up to 691,200 targets/day

The camera should enable AcuSearch function

• By NVRup to 8-ch,up to 691,200 targets/day

Protección perimetral

• By NVR

perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP

perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP

• By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels

Estructuralización de vídeo

• Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
• Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
• Comparación de imagen de cara

16-ch;

Comparison speed: 32 pictures per second

ANPR

• By CameraAll channels
• Plate AttributesPlate number, license plate color, license plate type
• Atributos del vehículoVehicle brand, vehicle color, vehicle type

Video and Audio

• Entrada de vídeo IP

32-ch

Up to 32 MP resolution

• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth400 Mbps
• HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
• HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA Output1920 × 1080/60Hz
• Video Output ModeHDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Salida de audio1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Descodificación

• Formato de decodificaciónH.265/H.265+/H.264/H.264+
• Decodificación2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
• Reproducción Sincrónica16-ch
• Resolución de grabación32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Red

• Conexión remota128
• Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Interfaz de red2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access ProtocolONVIF(Version 2.5), RTSP

Auxiliary Interface

• SATA4 SATA interfaces; 3.5-inch HDD
• eSATA1 eSATA interface
• CapacidadUp to 16 TB capacity for each HDD
• Interfaz de serie1 RS-232, 1 RS-485 (full-duplex)
• Interfaz USBFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarma E/S16/4

General

• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Fuente de alimentación100 to 240 VAC, 50 to 60 Hz
• Consumo≤ 50 W (without HDD)
• Temperatura de trabajo-10 to 55°C (14 to 131° F)
• Condiciones de Humedad10 to 90%
• Dimensión (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
• ≤ 5 kg (without HDD, 11 lb.)

Certificación

• Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CE

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
