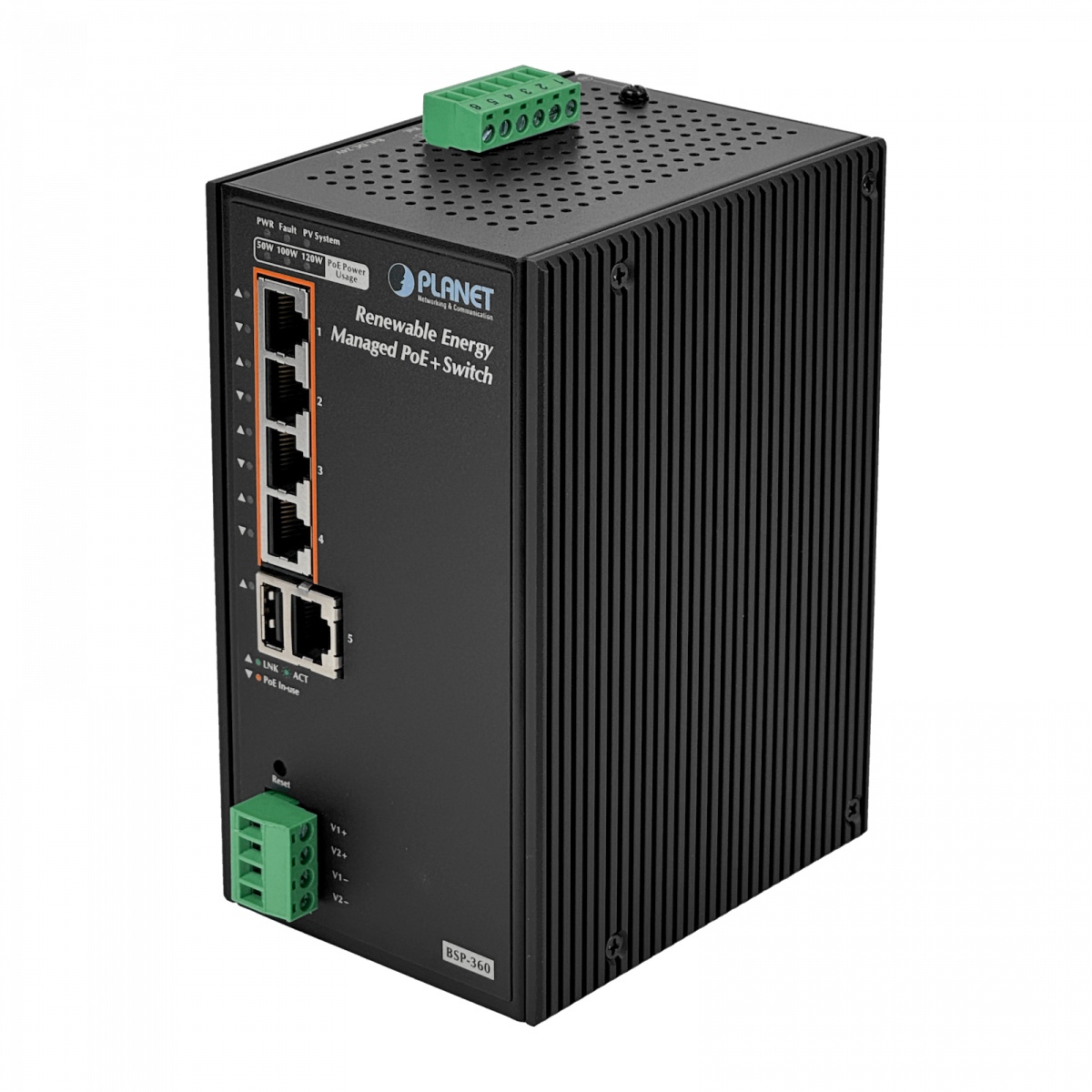

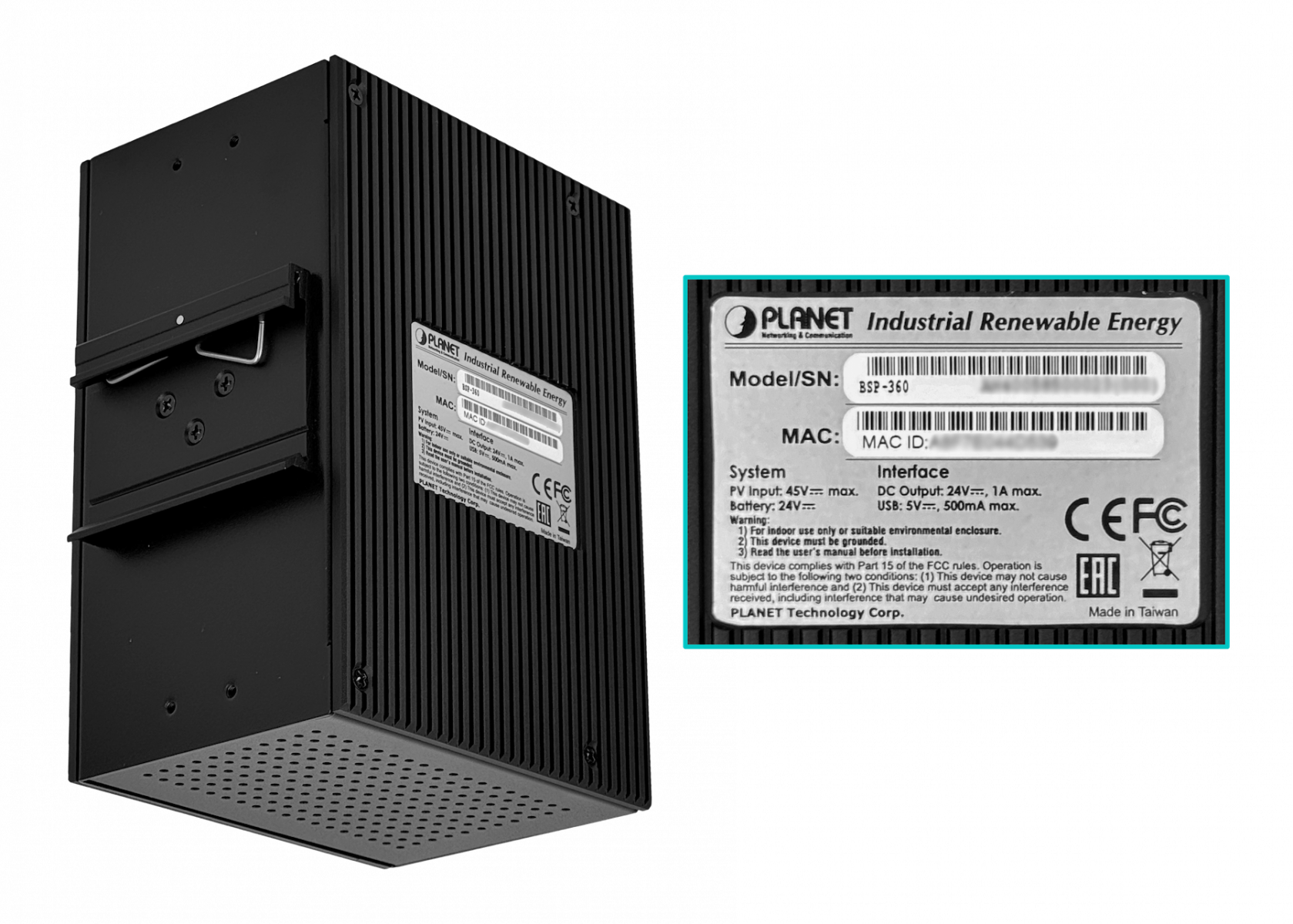

PLANET Switch Adm 5-1000-PoE+ CargaSolar PV24-45V/120W req-Bat24V Rdin
Descripción
BSP-360
Se adjunta fichá técnica
| Hardware Specifications | |
|---|---|
| Copper Ports | LAN: 5 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 1 to Port 5, bridge mode) WAN: 1 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 5, gateway mode) |
| PoE Injector Port | 4 ports with 802.3af/802.3at PoE injector function (Port 1 to Port 4) |
| USB | 1 USB Type A female for setting backup |
| Power Output | 4 PoE out 51VDC; max. 36 watts per PoE port 2 DC out 24@ 2A maximum (four-pin terminal block) * The voltage of DC out is based on the battery. |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 10Gbps/non-blocking |
| Switch Throughput@64 bytes | 5.95Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 512Kbit |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Reset Button | < 5 sec: System reboot > 10 sec: Factory default |

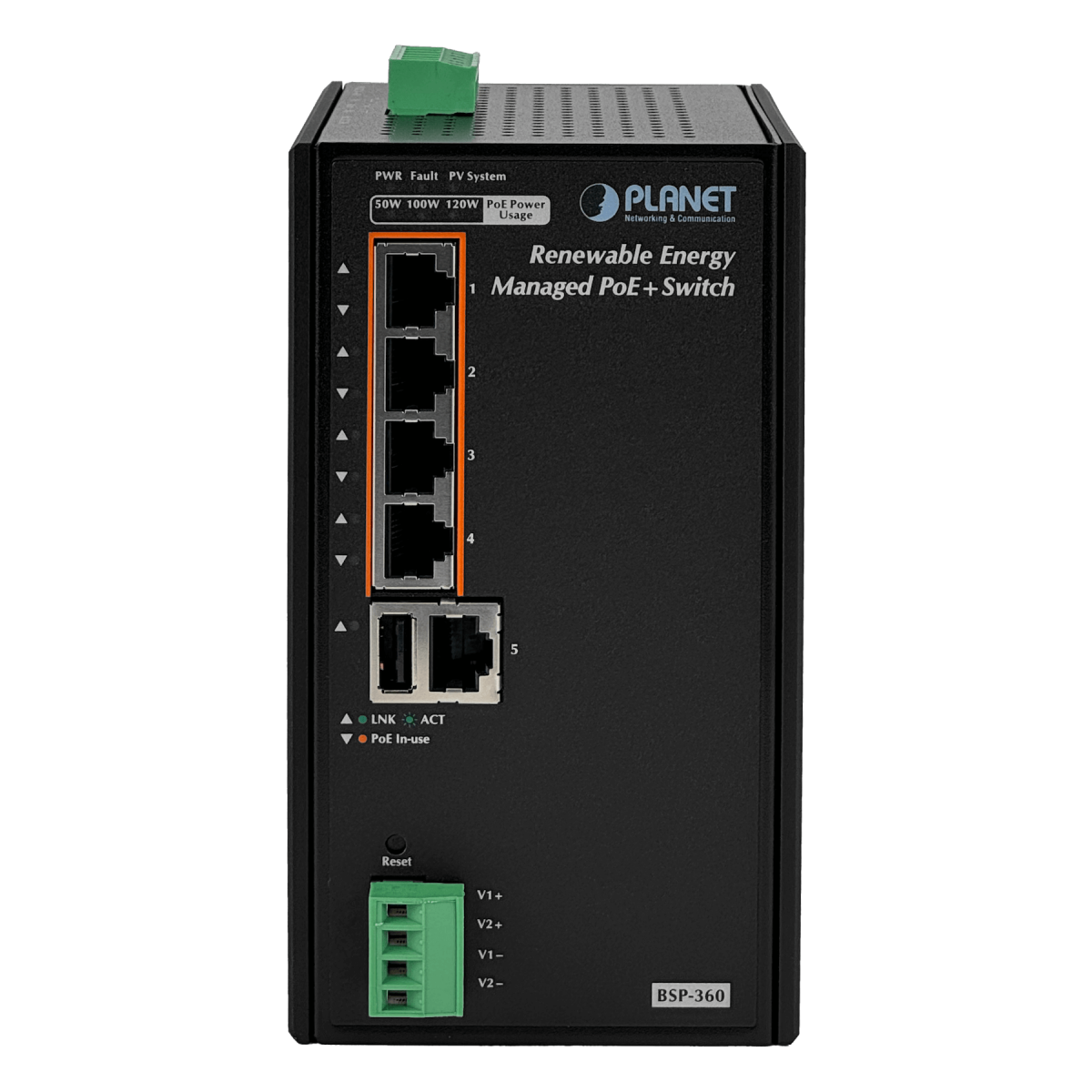

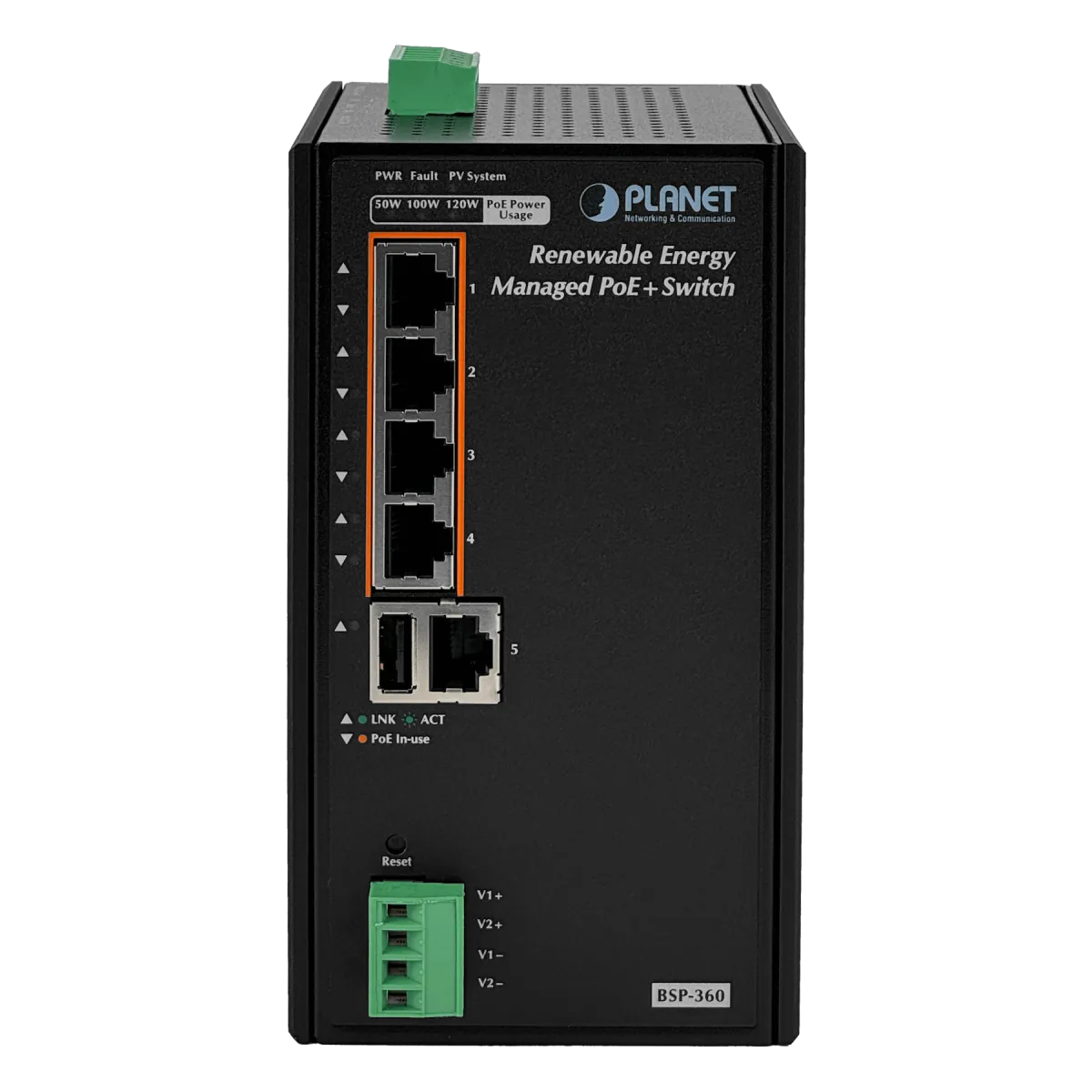

| LED Indicators | 3 LEDs for System and Power: - Green: Power - Red: Alarm - Green: PV System 4 LEDs for PoE Copper Ports (Port 1~Port 4): - Green: LNK/ACT - Amber: PoE-in-use 1 LED for 10/100/1000T Copper Port (Port 5): - Green: LNK/ACT 3 LEDs for PoE Power Usage (W) - Amber: 50, 100 and 120W |

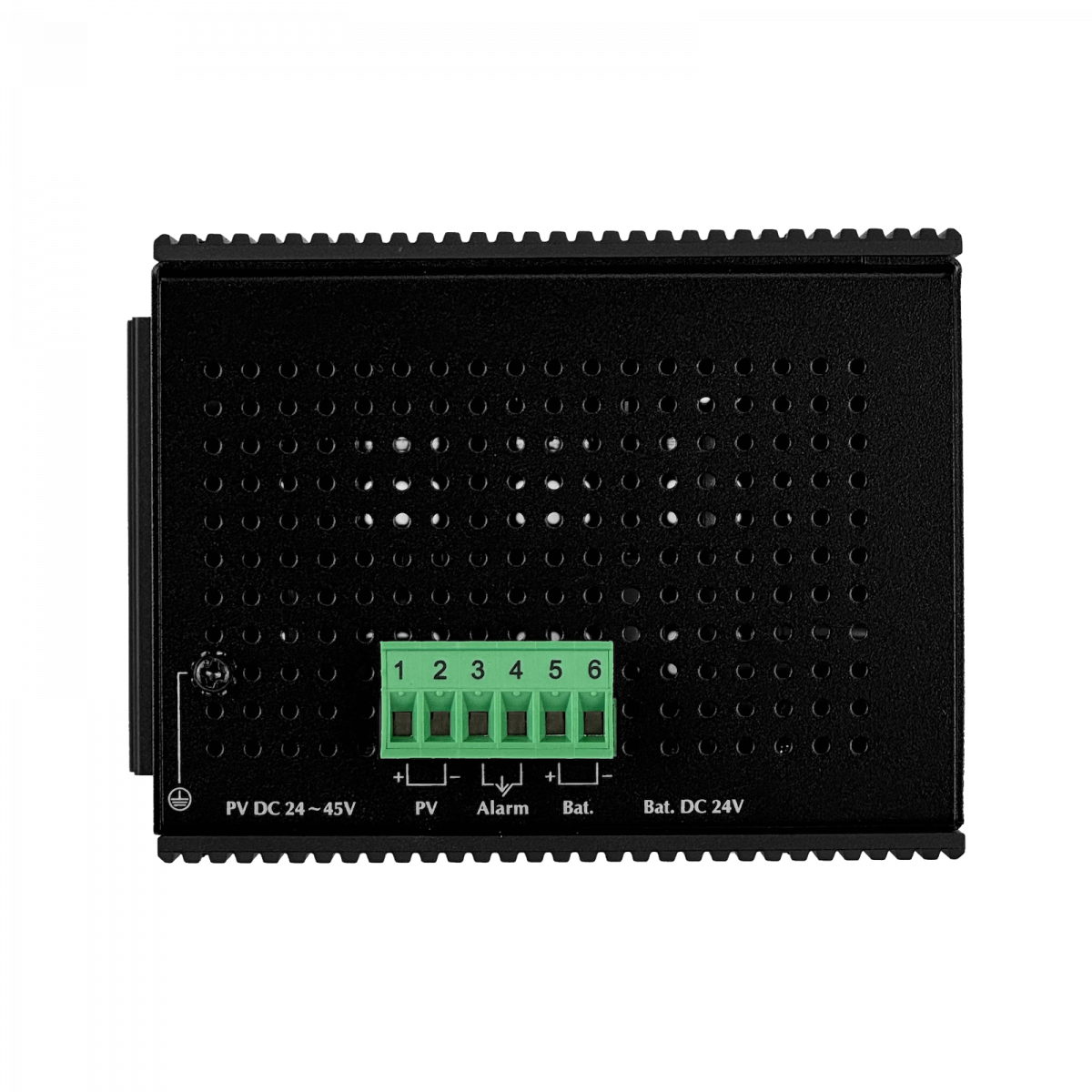

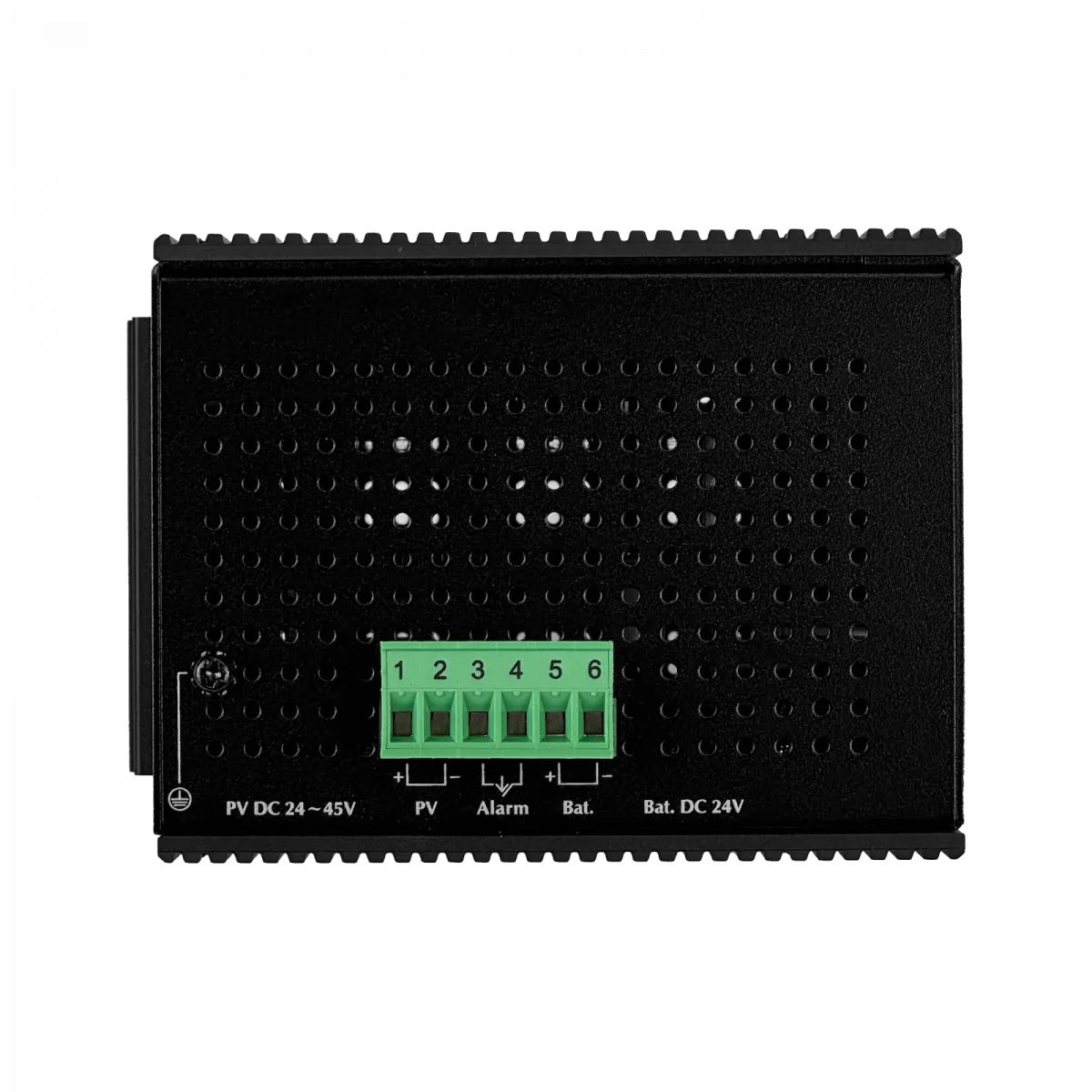

| Connector | Removable 6-pin terminal block Pin 1/2 for PV panel; Pin 3/4 for alarm; Pin 5/6 for battery |
| Alarm | 1 digital output (DO): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Open collector to 24V DC, 100mA max. |
| Power Requirements | PV in: 24~45V DC Battery in/out: 24V DC |
| Power Consumption/ Dissipation | 5.04 watts, 17.1BTU (Standby without PoE function) 6.96 watts, 23.7 BTU (Full loading without PoE function) 135.36 watts, 461.5 BTU (Full loading with PoE function) |
| Dimensions (W x D x H) | 86.8 x 107.3 x 152 mm |
| Weight | 1251g |
| ESD Protection | 6KV DC |
| Enclosure | IP30 aluminum case |

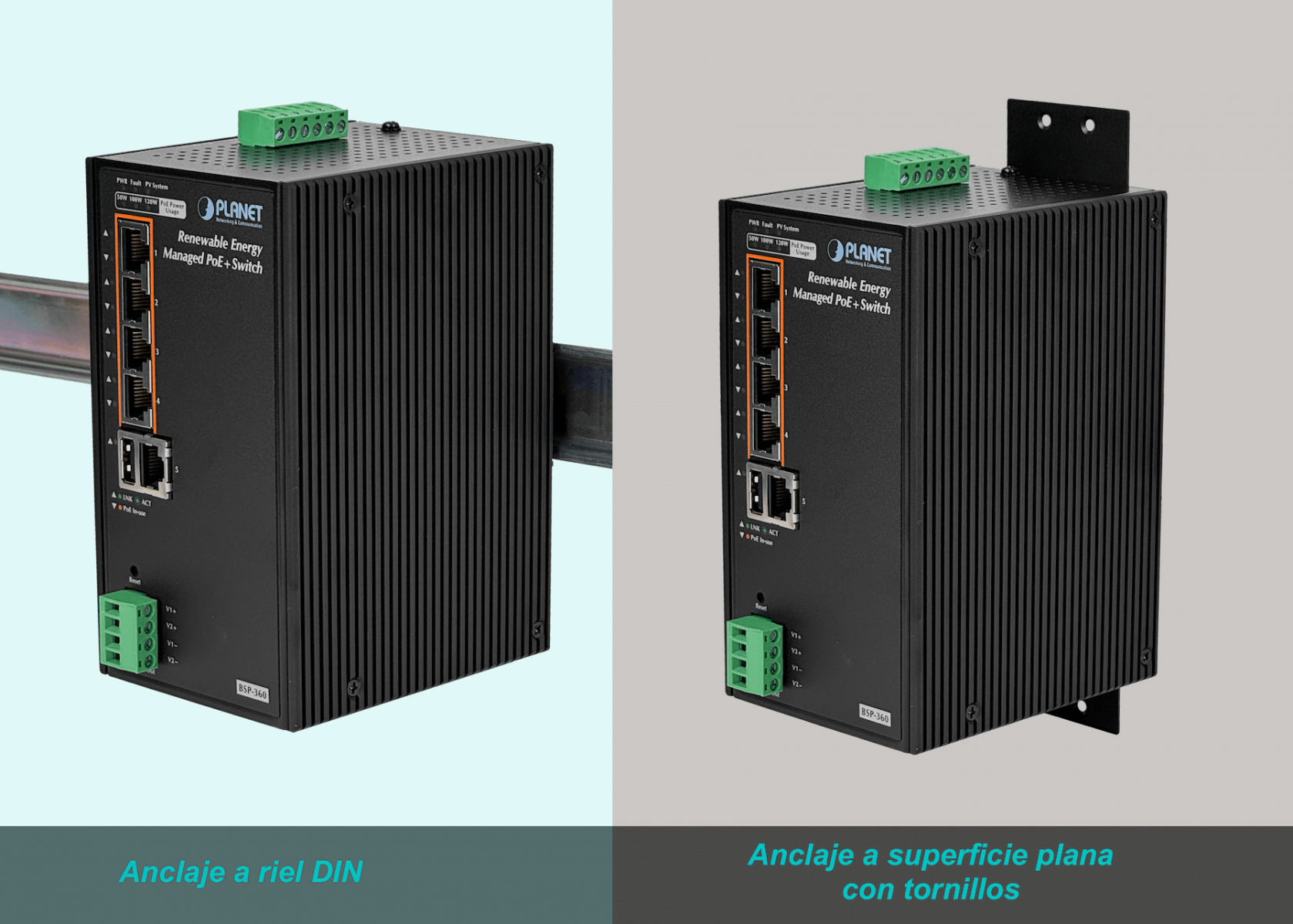

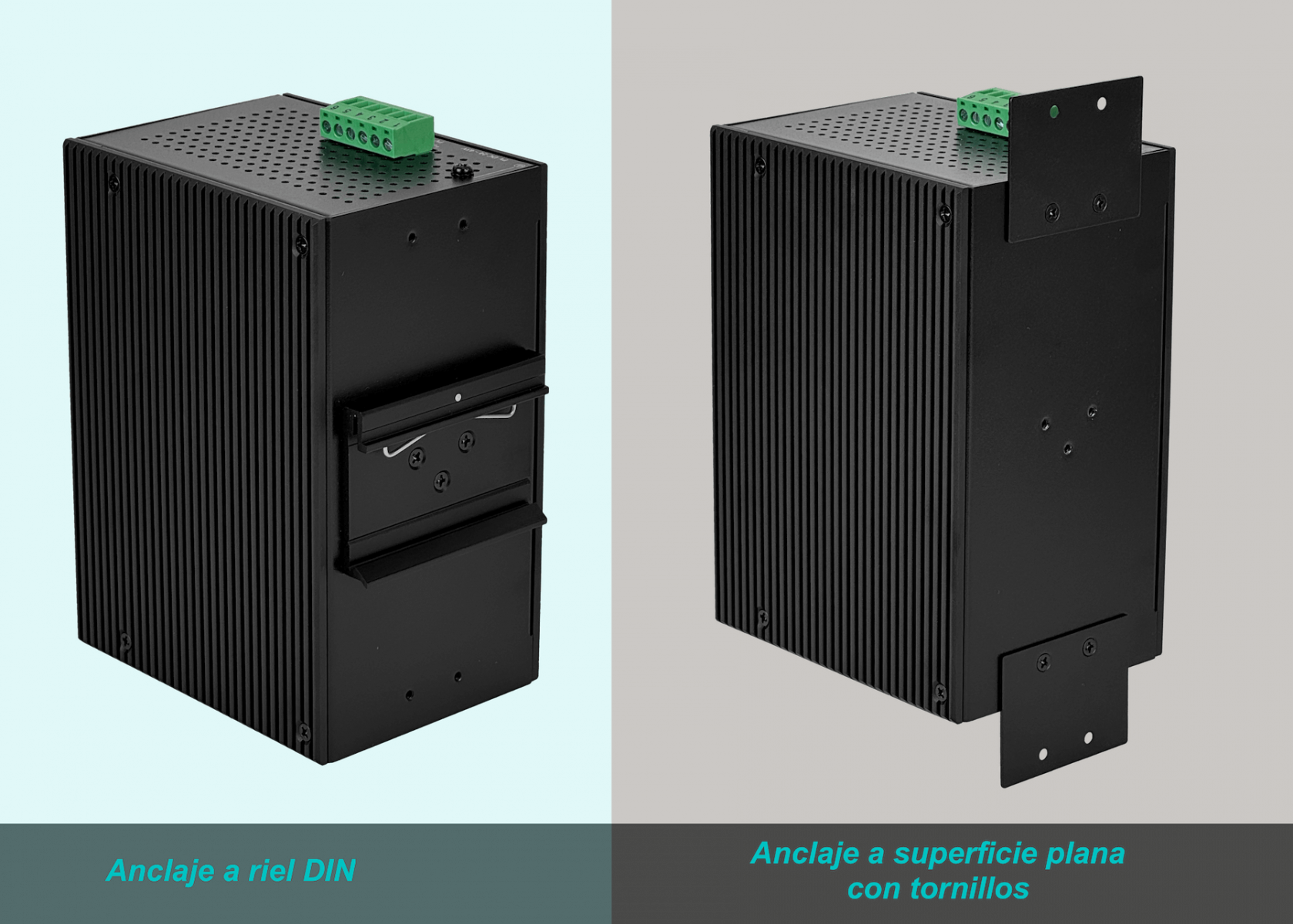

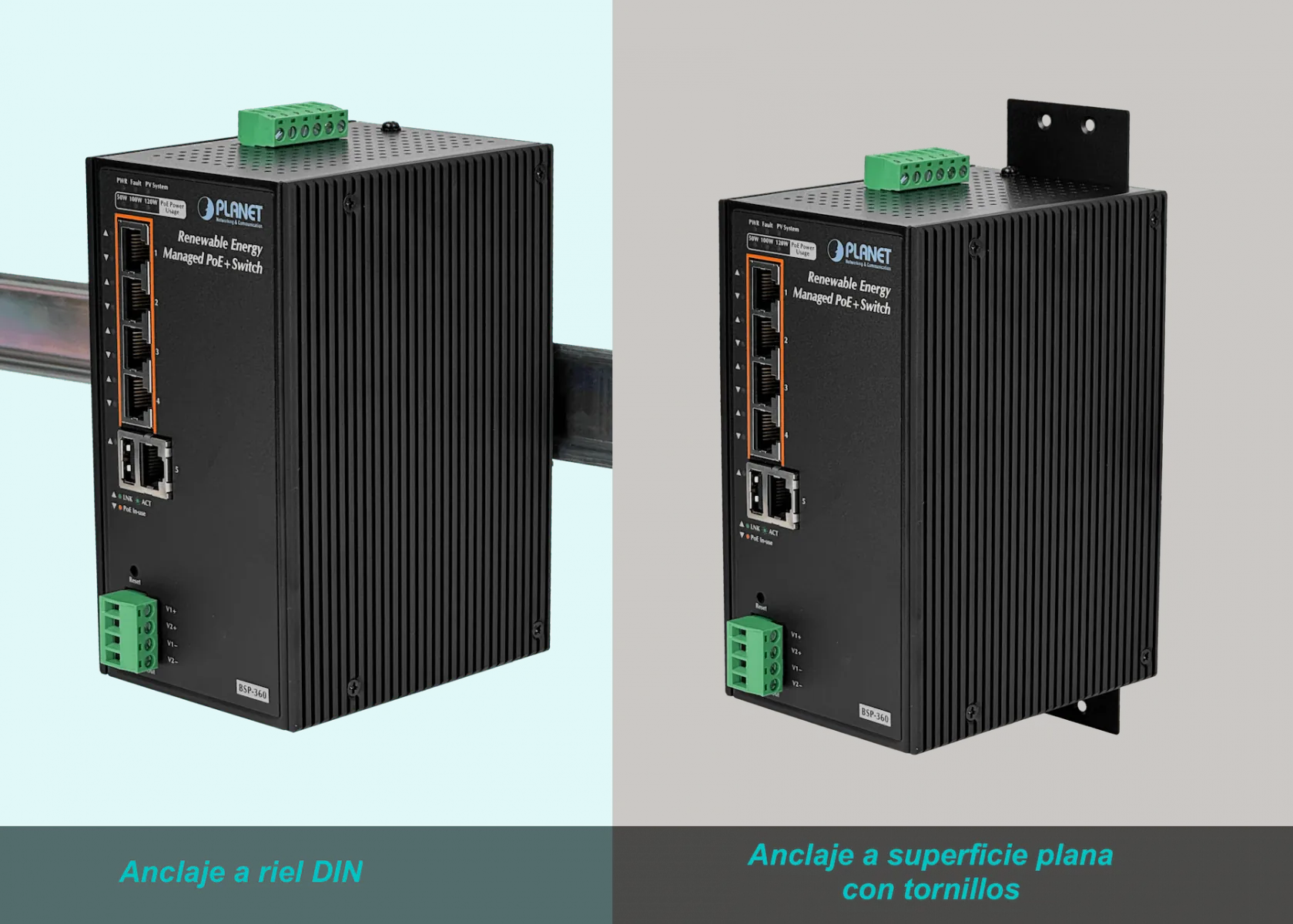

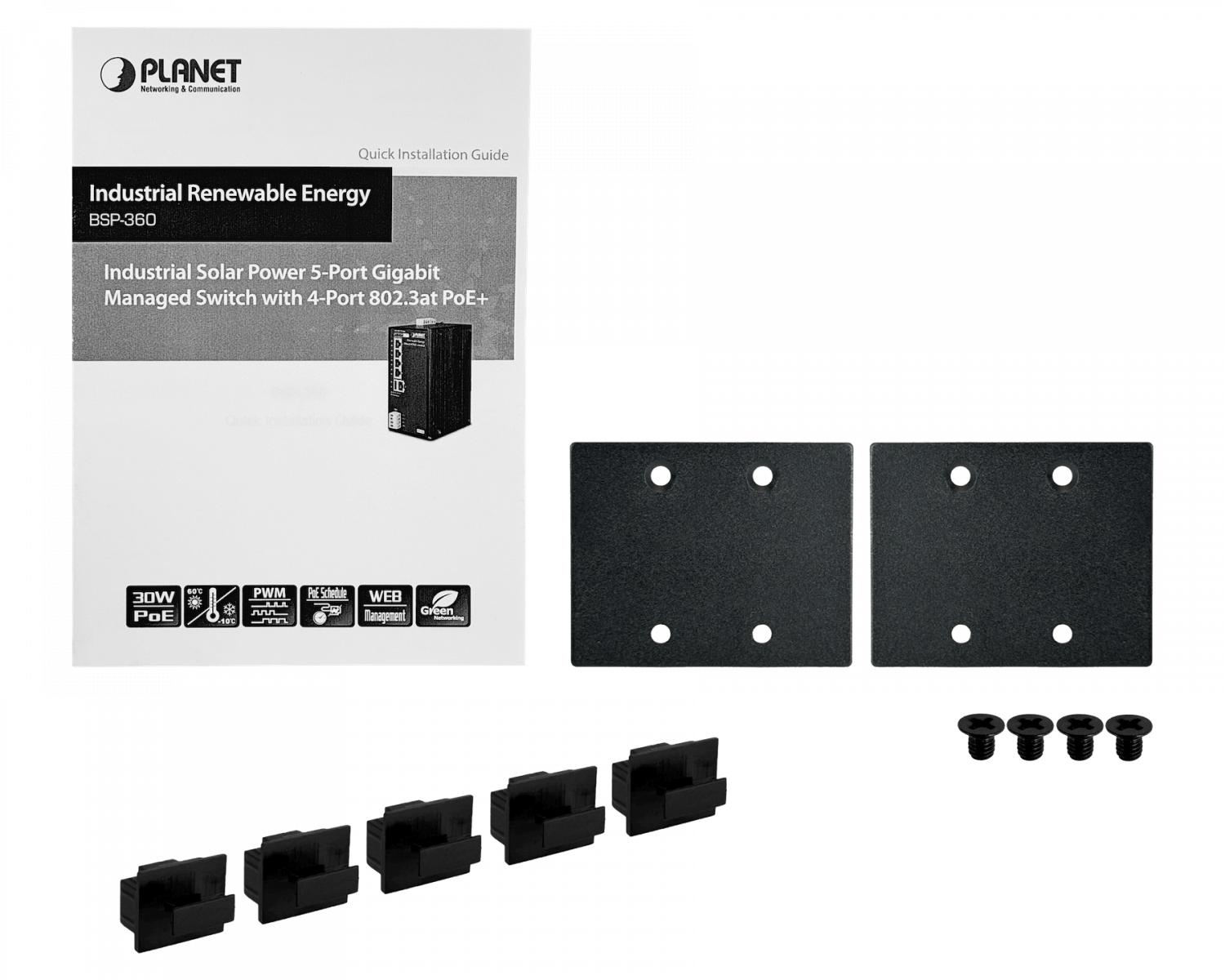

| Installation | DIN-rail kit and wall-mount ear |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 51V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) Per port 51V DC, 535mA. Max. 36 watts (IEEE 802.3at) |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | 120 watts (PoE consumption + DC out and depending on power input) |
| Max. Number of Class 2 PDs | 4 |
| Max. Number of Class 3 PDs | 4 |
| Max. Number of Class 4 PDs | 4 |
| Renewable Power Input (PV IN) | |
| Min. Voltage | 24V (Suggest > 30V for fully charge to battery) |
| Max. Voltage | 45V |
| Max. Current | < 8.8A |
| Max. Power | < 400W |
| Battery Information | |
| Type | Lithium Battery (Default) Lead-acid Battery |
| FCV | Lithium Battery (Default) fixed 26.6V Lead-acid Battery 27.2V (26.0~30.0V) |
| ACV | Lithium Battery (Default) fixed 28.7V Lead-acid Battery 29.2V (28.0~32.0V) |
| LVD (Low Voltage Disconnection) | Lithium Battery (Default) 21.3V (19.6~23.0V) Lead-acid Battery 22.2V (21.0~23.0V) |
| LVR (Low Voltage Reconnection) | Lithium Battery (Default) 24.0V (23.5~25.0V) Lead-acid Battery 23.5V (23.5~27.0V) |
| Router Features | |
| Internet Connection Type | Shares data and Internet access with users, supporting the following internet accesses: - PPPoE - Dynamic IP - Static IP - PPTP - L2TP |
| Firewall | NAT firewall with SPI (Stateful Packet Inspection) Built-in NAT server supporting Port Forwarding, and DMZ Built-in firewall with IP address/MAC address/Port/ URL filtering Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection |
| Routing Protocol | Static/Dynamic (RIP1 and 2) routing |
| VPN Pass-through | PPTP, L2TP, IPSec, IPv6 |
| LAN | Built-in DHCP server supporting static IP address distribution Supports UPnP, Dynamic DNS Supports IGMP Proxy Supports 802.1d STP (Spanning Tree) IP/MAC-based bandwidth control |
| Management | |
| Management Interface | Setting up of system/management functions Web firmware upgrade SNMP trap for alarm notification of events |
| PoE Management | Power limit by consumption and allocation PoE admin mode Per port power schedule Per port power enable/disable Power feeding priority Current per port usage and status Total power consumption PD alive check Scheduled power recycling |
| Battery Management | Current battery usage status Low voltage cut-off protection Fully-charged hold time protection |
| PLANET ONVIF IP Camera Management | Supports PLANET ONVIF IP camera discovery A maximum of four PLANET ONVIF IP cameras can be powered by one BSP-360 switch. Supports IP camera snapshot function in the LAN. |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 5424: Syslog |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Características de administración | |
|---|---|
| Tipo de interruptor | Gestionado |
| Administación basada en web | Si |
| Puertos e Interfaces | |
|---|---|
| Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 5 |
| Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
| Cantidad de puertos USB 2.0 | 1 |
| Conexión | |
|---|---|
| Estándares de red | IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Soporte 10G | No |
| Bidireccional completo (Full duplex) | Si |
| Transmisión semidúplex | Si |
| Soporte de control de flujo | Si |
| Modulación | PWM |
| Auto MDI / MDI-X | Si |
| Protocolo de árbol de expansión | Si |
| Auto-negociación | Si |
| Transmisión de datos | |
|---|---|
| Tabla de direcciones MAC | 8000 entradas |
| Capacidad de conmutación | 10 Gbit/s |
| Rendimiento | 5,95 Mpps |
| Guardar y remitir | Si |
| Seguridad | |
|---|---|
| Características de DHCP | DHCP server |
| IGMP | Si |
| Algoritmos de seguridad soportados | SNMP |
| MAC, filtro de direcciones | Si |
| Diseño | |
|---|---|
| Color del producto | Azul, Blanco |
| Botón de restaurar | Si |
| Indicadores LED | Actividad, Fallo, Enlace, Poder, Sistema |
| Código IP (International Protection) | IP30 |
| Montaje de pared | Si |
| Montaje en carril DIN | Si |
| Desempeño | |
|---|---|
| Firmware actualizable | Si |
| Tamaño de buffer | 512 KB |
| Control de energía | |
|---|---|
| Voltaje de entrada DC | 24 V |
| Corriente de entrada | 6 A |
| Voltaje de entrada | 60 V |
| Voltaje de salida | 24 V |
| Corriente de salida | 1 A |
| Consumo energético | 135,36 W |
| Funciones de protección de poder | Cortocircuito |
| Alimentación a través de Ethernet (PoE) | |
|---|---|
| Energía sobre Ethernet (PoE) | Si |
| Cantidad de puertos Power over Ethernet (PoE) | 4 |
| Potencia por puerto de alimentación a través de Ethernet (PoE) | 30 W |
| Potencia a través de Ethernet (PoE) Presupuesto | 120 W |
| Condiciones ambientales | |
|---|---|
| Intervalo de temperatura operativa | -10 - 60 °C |
| Intervalo de temperatura de almacenaje | -10 - 70 °C |
| Intervalo de humedad relativa para funcionamiento | 5 - 95% |
| Intervalo de humedad relativa durante almacenaje | 5 - 95% |
| Disipación del calor | 461,5 BTU/h |
| Peso y dimensiones | |
|---|---|
| Ancho | 89 mm |
| Profundidad | 107 mm |
| Altura | 152 mm |
| Peso | 1,03 kg |
| Aprobaciones reguladoras | |
|---|---|
| Certificación | FCC Part 15 Class A, CE |
| Datos logísticos | |
|---|---|
| Código de Sistema de Armomización (SA) | 85176990 |
