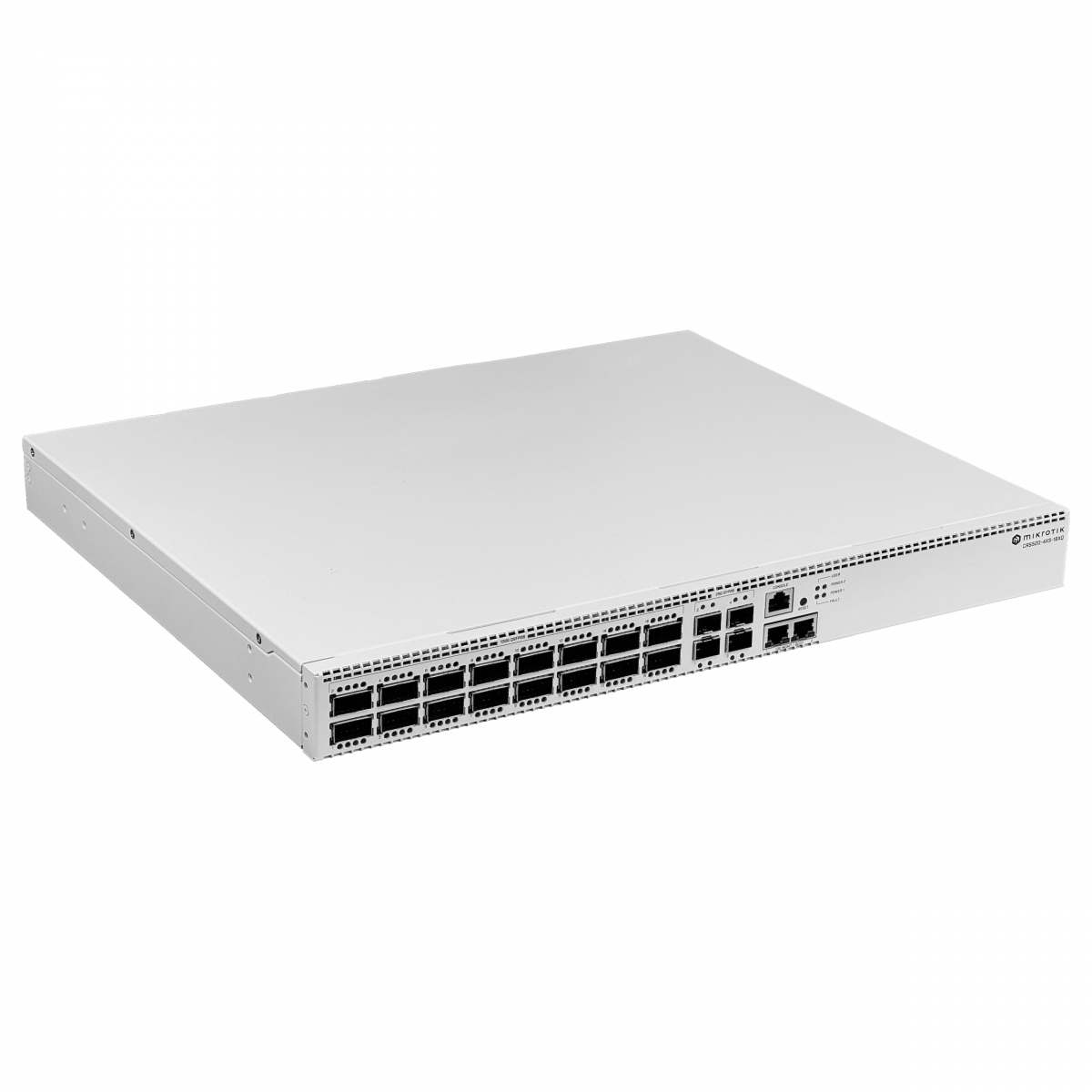

Switch MikroTik CRS520-4XS-16XQ-RM, 16 Puertos QSFP28 100G, 4-SFP28 25G, Rackmount
Descripción
Se adjunta ficha técnica

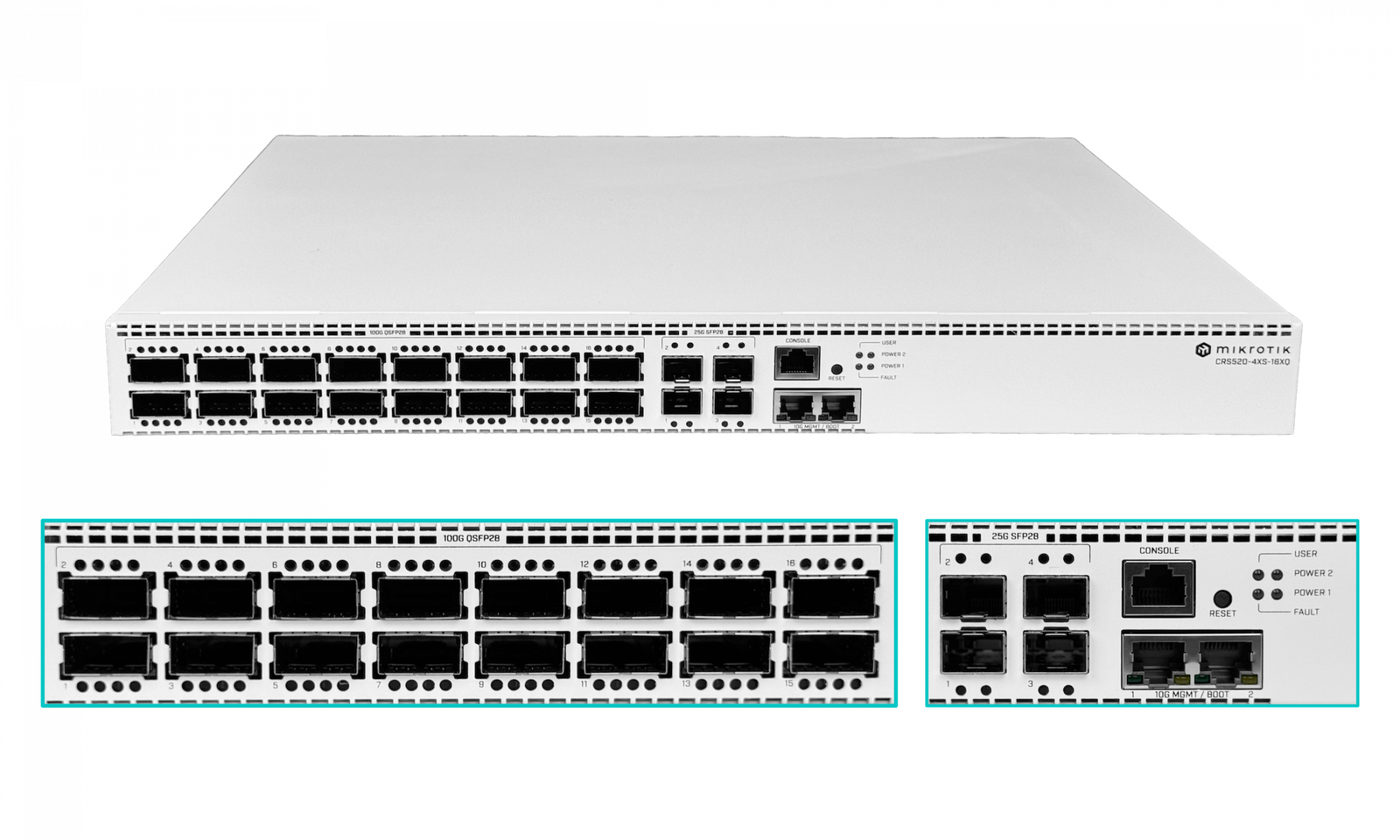

| Puertos e Interfaces | |
|---|---|
| Número de puertos Ethernet 10G (cobre) | 2 |
| Puerto de consola | RJ-45 |
| Número de puertos QSFP28 | 16 |
| Número de puertos SFP28 | 4 |
| Conexión | |
|---|---|
| Soporte 10G | Si |
| Diseño | |
|---|---|
| Montaje en rack | Si |
| Desempeño | |
|---|---|
| Sistema operativo instalado | RouterOS |
| Procesador incorporado | Si |
| Frecuencia del procesador | 2000 MHz |
| Tipo de memoria | Flash |
| Memoria interna | 4000 MB |
| Memoria Flash | 128 MB |
| Tiempo medio entre fallos | 200000 h |
| Control de energía | |
|---|---|
| Fuente de energía | Corriente alterna |
| Fuente de alimentación incluida | Si |
| Voltaje de entrada AC | 100 - 240 V |
| Frecuencia de entrada AC | 50/60 Hz |
| Consumo de energía (max) | 150 W |
| Alimentación a través de Ethernet (PoE) | |
|---|---|
| Energía sobre Ethernet (PoE) | No |
| Condiciones ambientales | |
|---|---|
| Intervalo de temperatura operativa | -20 - 50 °C |
| Peso y dimensiones | |
|---|---|
| Ancho | 443 mm |
| Profundidad | 367 mm |
| Altura | 44 mm |
| Aprobaciones reguladoras | |
|---|---|
| Certificados de conformidad | CE, EAC, RoHS |
Specifications
| Details | |
|---|---|
| Product code | CRS520-4XS-16XQ-RM |
| Architecture | ARM 64bit |
| CPU | AL52400 |
| CPU core count | 4 |
| CPU nominal frequency | 2 GHz |
| Switch chip model | 98CX8410 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 50°C |
| Suggested price | $2195.00 |

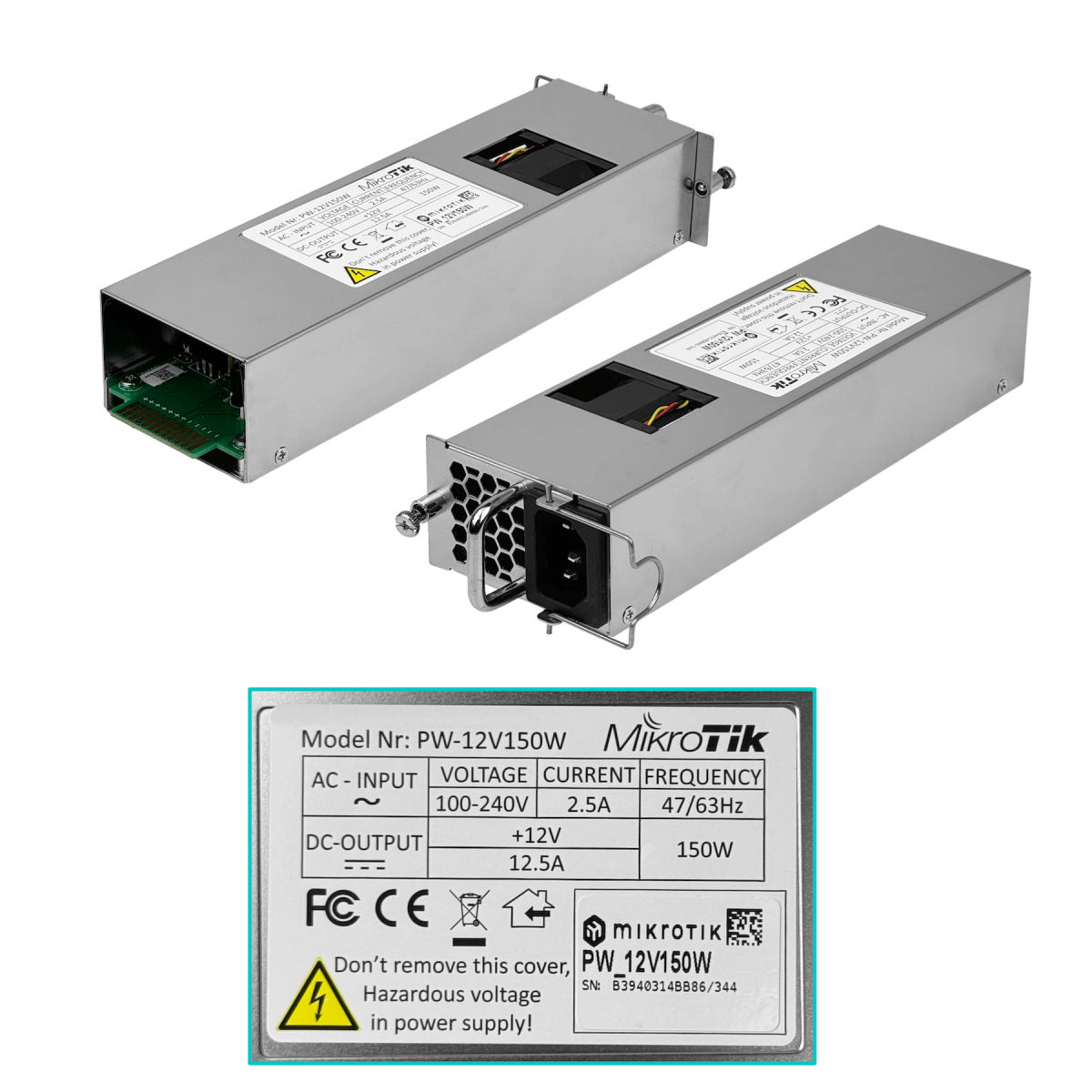

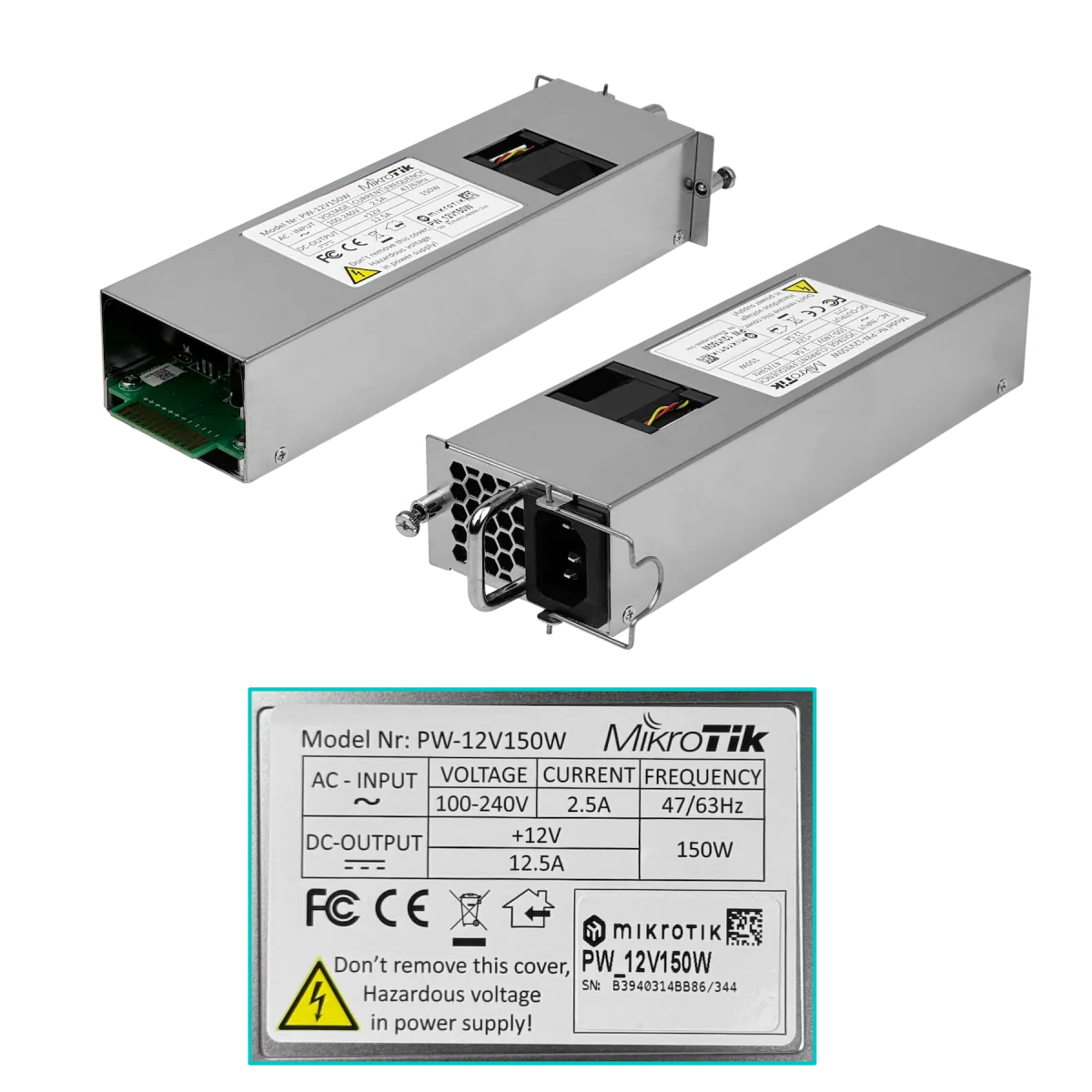

Powering
| Details | |
|---|---|

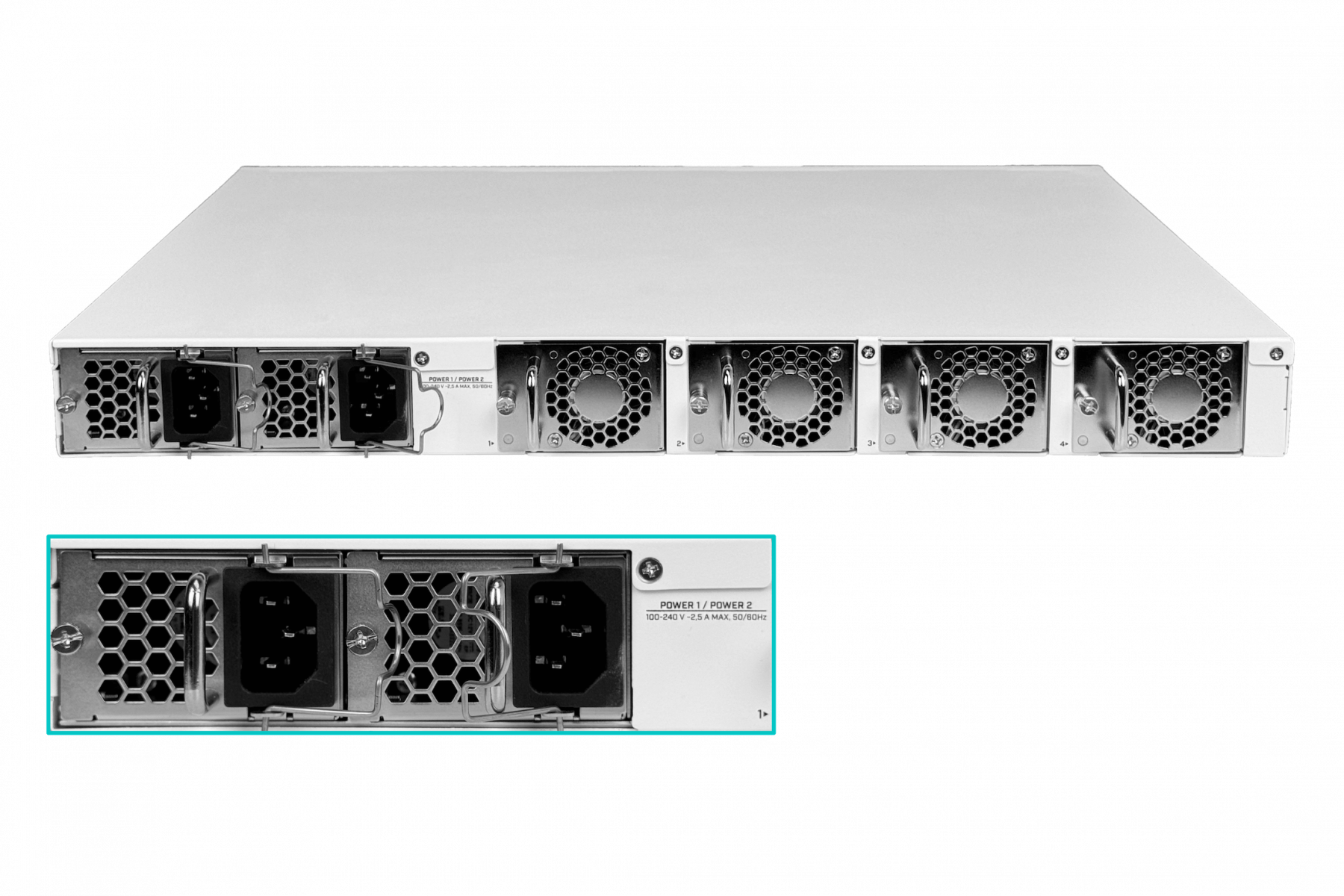

| Number of AC inputs | 2 |
| AC input range | 100-240 |

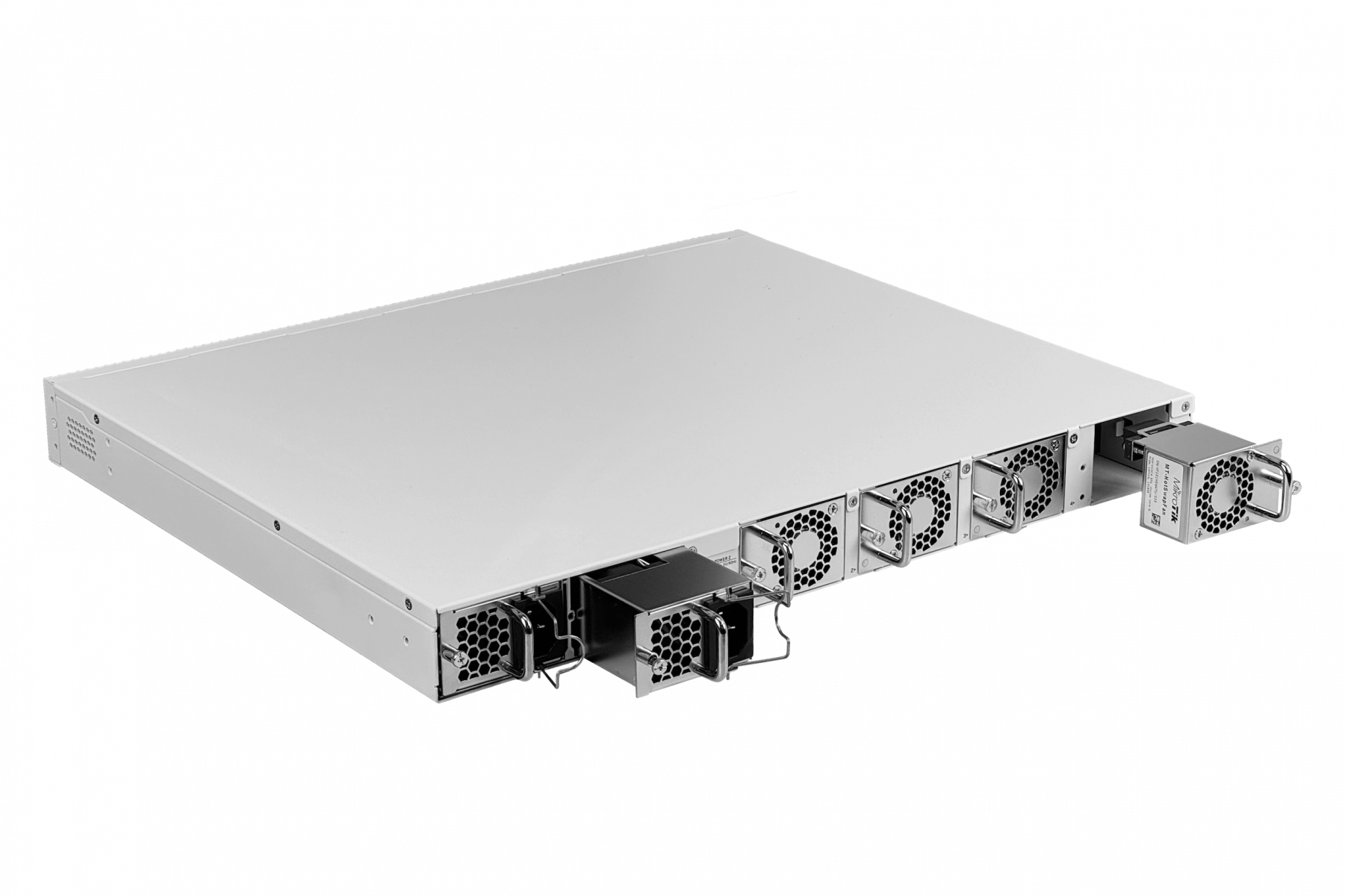

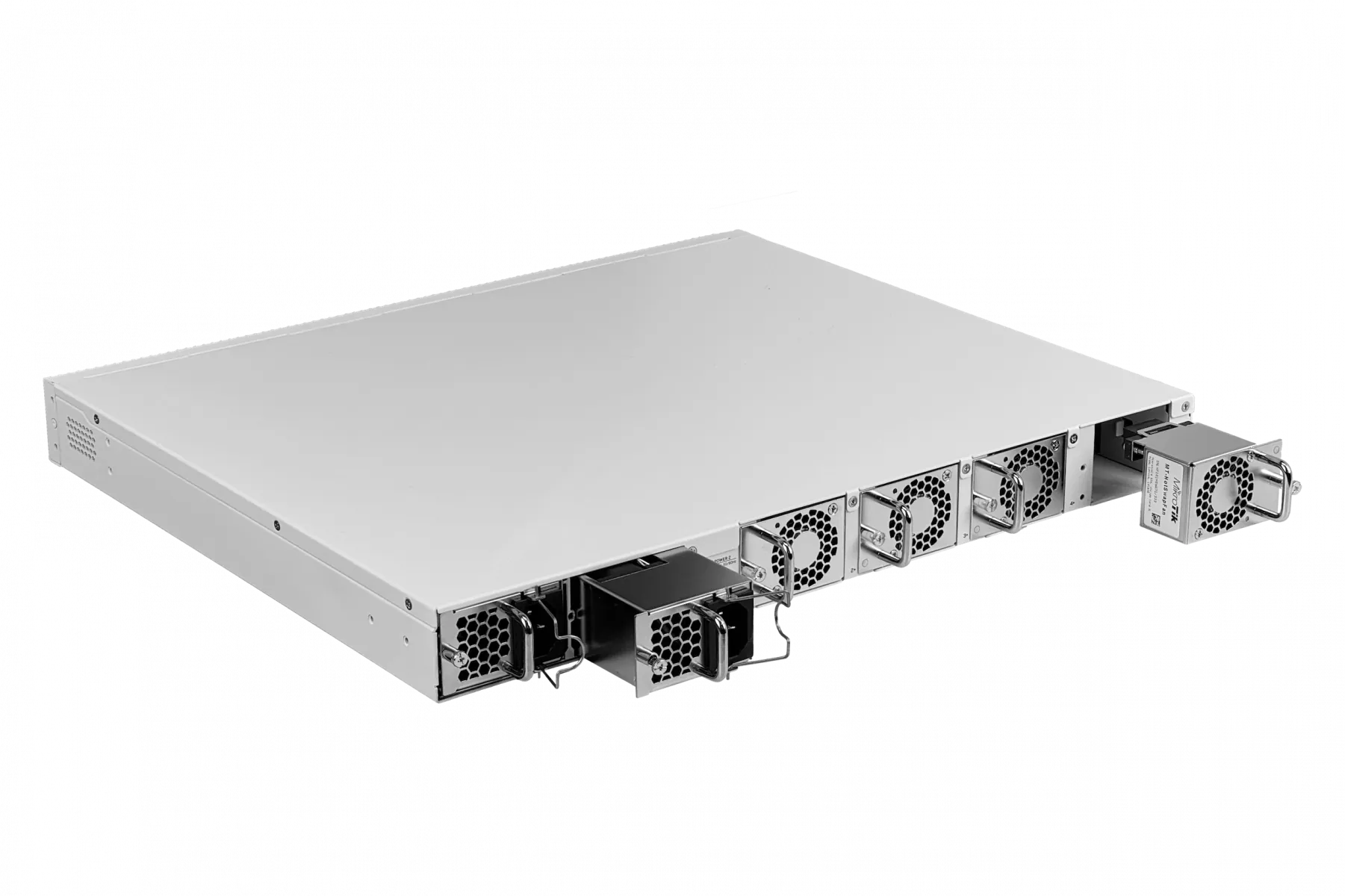

| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 150 W (220 W with both PSUs) |
| Max power consumption without attachments | 123 W |

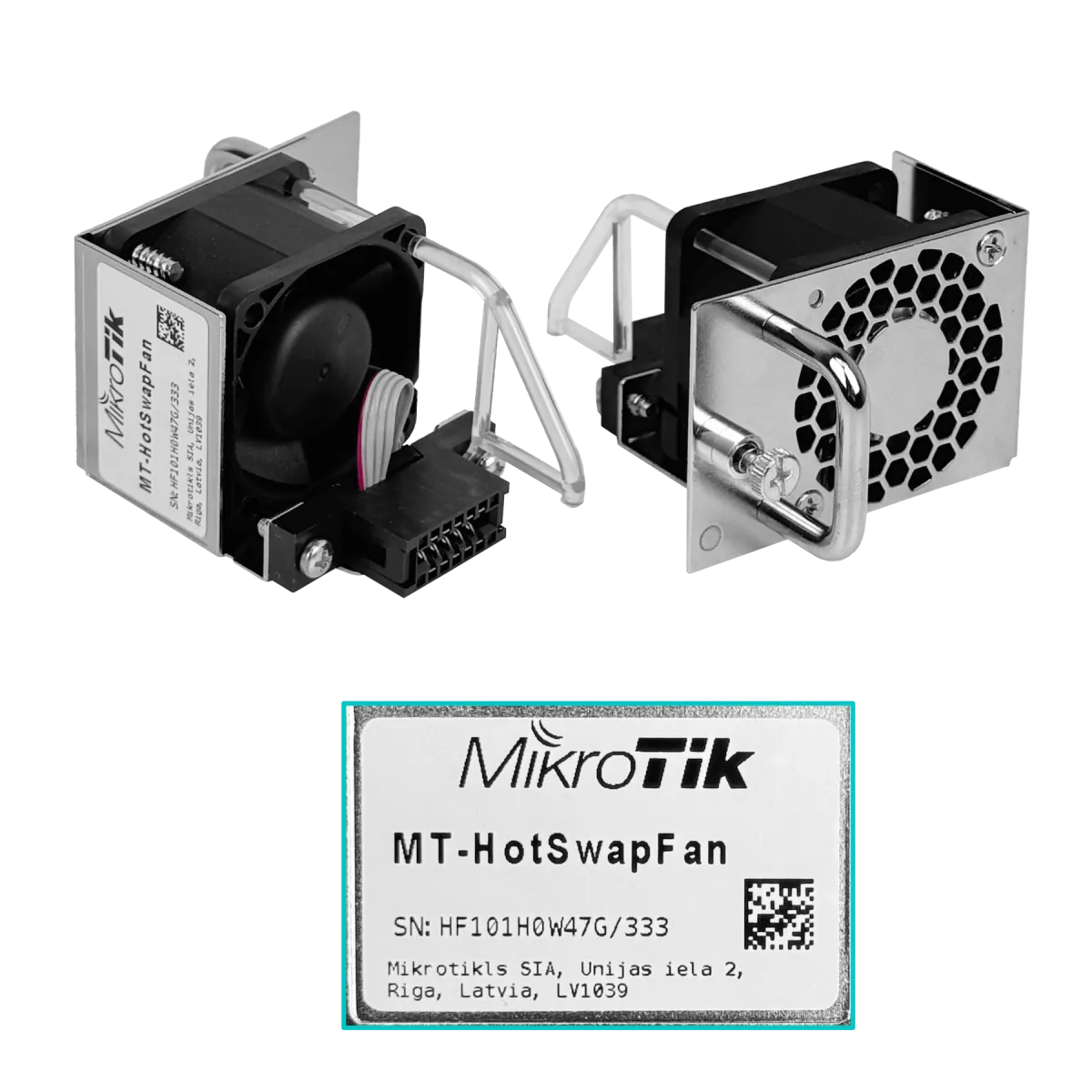

| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| Number of 1G/2.5G/5G/10G Ethernet ports | 2 |
Fiber
| Details | |
|---|---|
| Number of 25G SFP28 ports | 4 |
| Number of 100G QSFP28 ports | 16 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
