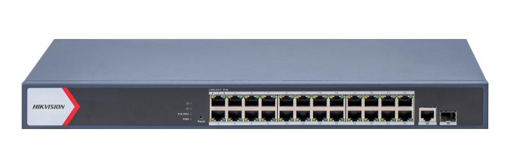

Switch Hikvision 24xgigabit PoE RJ45 ports, 1×gigabit RJ45 port, 1xgigabit fiber optical port

General

• CarcasaMetal material
• Peso neto2.96 kg (6.52 lb)
• Peso bruto3.2 kg (7.05 lb)
• Dimensiones (W x H x D)440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
• Temperatura de funcionamiento0 °C to 45 °C (0 °F to 113 °F)
• Temperatura de almacenamiento-40 °C to 85 °C (-40 °F to 185 °F)
• Condiciones de humedad5% to 95% (no condensation)
• Humedad relativa5% to 95% (no condensation)
• Fuente de alimentación100~240 VAC, 50/60 Hz, Max. 4 A
• Modo de instalaciónRack (equipped with mounting ears)
• Max. El consumo de energía250 W
• Consumo de energía en inactivo30 W
• Surge Protection6 KV

Parámetros de red

• Puertos24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
• Tabla de direcciones MAC8 K
• Capacidad de conmutación56 Gbps
• Tasa de reenvío de paquetes41.66 Mpps
• Caché interna4.1 Mbits

Fuente de alimentación PoE

• PoE StandardIEEE 802.3af,IEEE 802.3at
• Pin de alimentación PoE8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• Puerto PoEPoE: Ports 1 to 24
• Max. Puerto de alimentación30 W
• PoE Power Budget230 W

Función de software

• Largo alcance

Ports 1 to 24: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

• Port Isolation

Ports 1 to 24: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE WatchdogPorts 1 to 24: auto detect and restart the cameras that do not respond.
• Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 8 aggregation groups.

• Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.

• VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 32 VLAN.

• HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.

• System Maintenance

Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Support 802.1ab LLDP for peer device discovery.

Support port mirroring for fault locating.

Certificaciones

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SeguridadCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Química

CE-RoHS (201165EU);

WEEE (201219EU);

Reach (Regulation (EC) No.19072006)

• 24 puertos Gigabit PoE RJ45, 1 puerto Gigabit RJ45, 1 puerto de fibra óptica Gigabit
• Presupuesto total de energía PoE 230 W
• Gestión unificada de la nube para sistemas de seguridad
• Topología de red a tu alcance
• Solución de problemas remota
• Gestión de topología visualizada
• Transmisión PoE de largo alcance de hasta 300 m
• Protección contra sobretensiones de 6 kV
