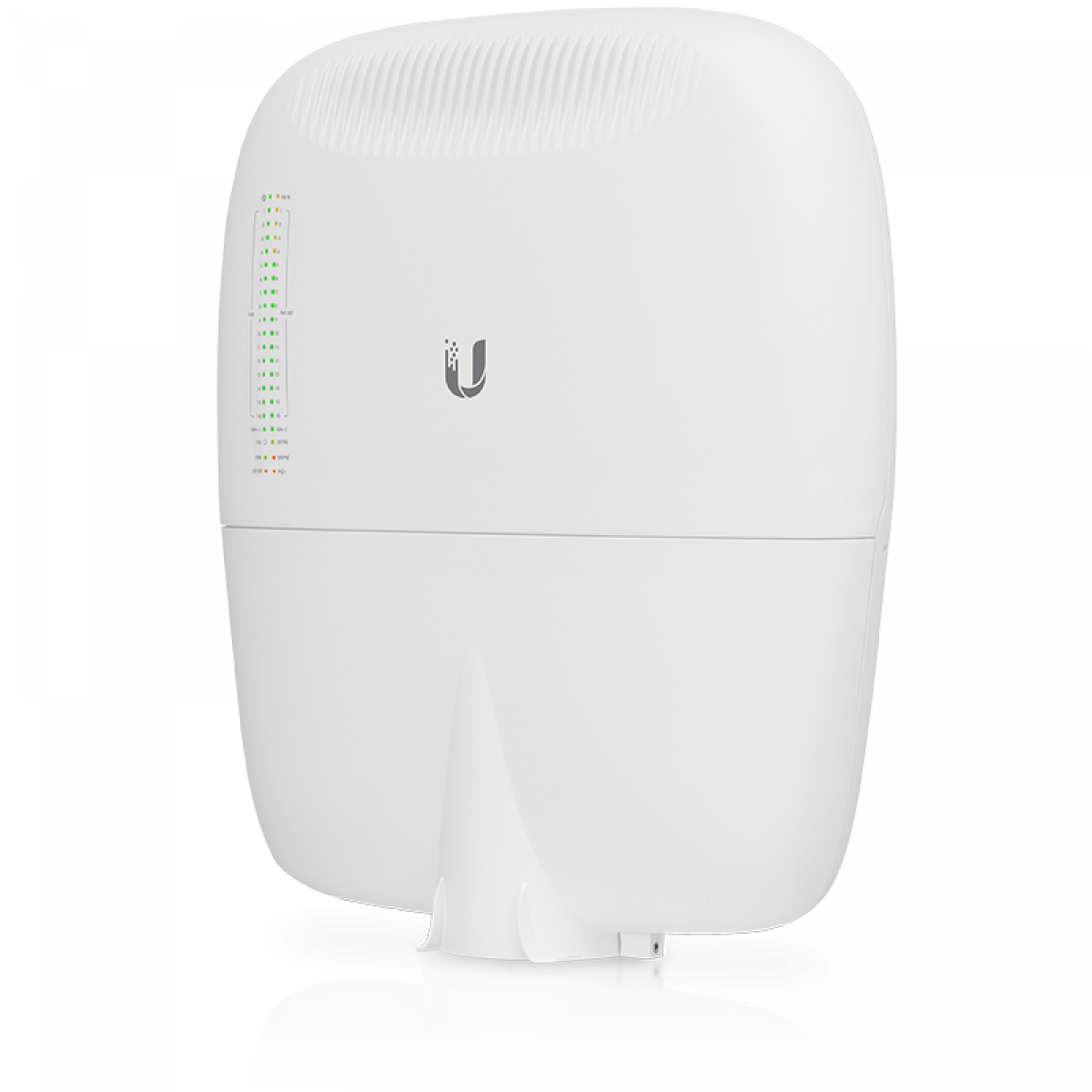

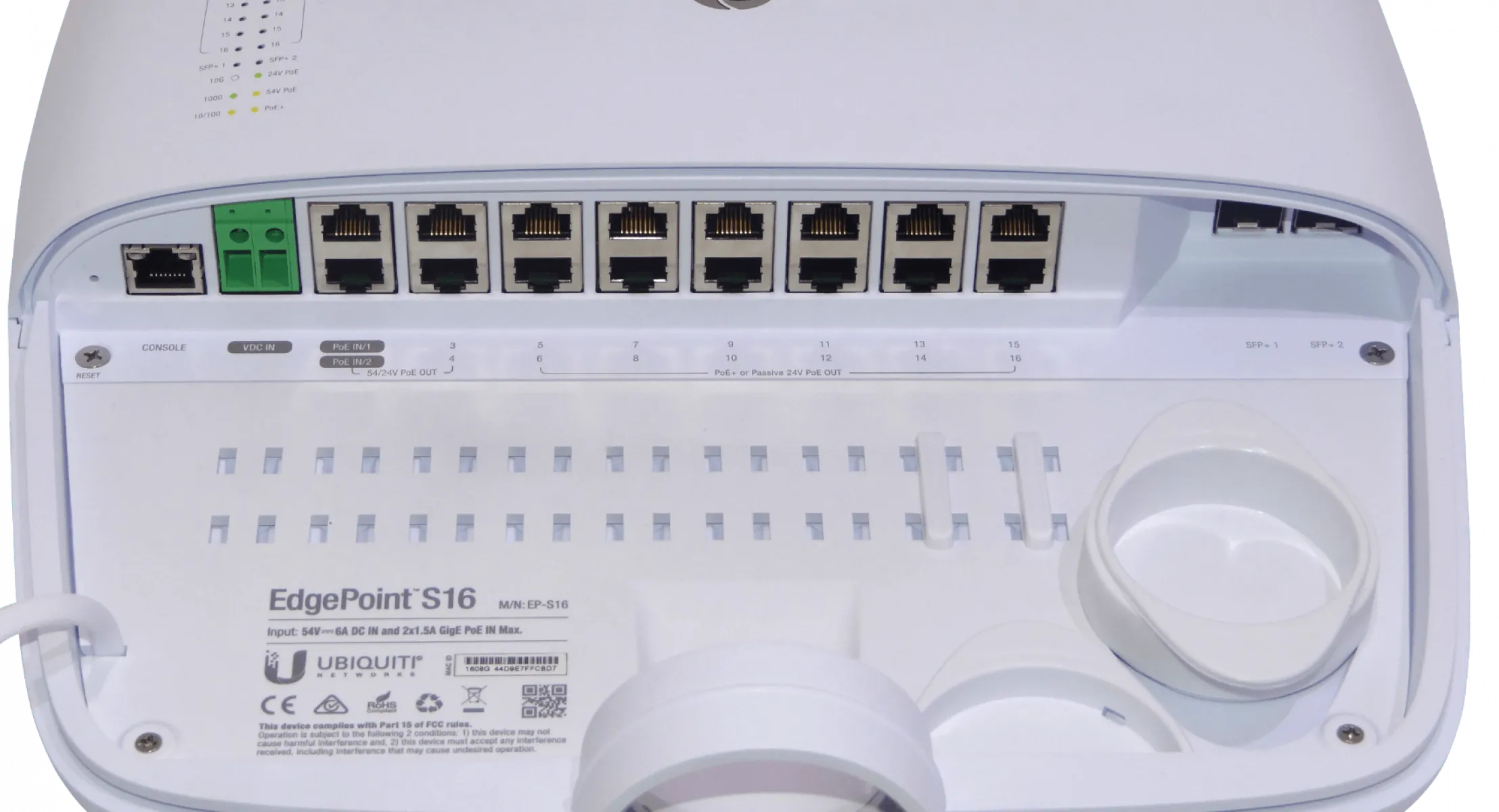

Switch Ubiquiti EP-S16 - EdgePoint S16, 16x PoE + 2x 10G SFP+, Montaje Exterior
Descripción
EP-S16
Se adjunta ficha técnica
| Características de administración | |
|---|---|
| Capa del interruptor | L2/L3 |
| Botón de restaurar | Si |
| Puertos e Interfaces | |
|---|---|
| Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 16 |
| Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
| Número de módulos SFP+ instalados | 2 |
| Conexión | |
|---|---|
| Estándares de red | IEEE 802.3af,IEEE 802.3at |
| Diseño | |
|---|---|
| Montaje en rack | Si |
| Color del producto | Color blanco |
| Indicadores LED | Actividad, Enlace, PoE, Poder, Velocidad |
| Certificación | CE, FCC, IC |
| Desempeño | |
|---|---|
| Procesador incorporado | Si |
| Control de energía | |
|---|---|
| Consumo de energía (max) | 60 W |
| Alimentación a través de Ethernet (PoE) | |
|---|---|
| Energía sobre Ethernet (PoE) | Si |
| Condiciones ambientales | |
|---|---|
| Intervalo de temperatura operativa | -40 - 65 °C |
| Intervalo de humedad relativa para funcionamiento | 10 - 90% |
| Peso y dimensiones | |
|---|---|
| Ancho | 326,6 mm |
| Profundidad | 382,7 mm |
| Altura | 88,8 mm |
| Peso | 3,4 kg |
| Mechanical | |
|---|---|
| Dimensions | Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5") With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2") |
| Weight | Without wall-mount: 3.4 kg (7.5 lb) With wall-mount: 3.8 kg (8.4 lb) |
| Enclosure material | Diecast aluminum alloy, UV-resistant polycarbonate |

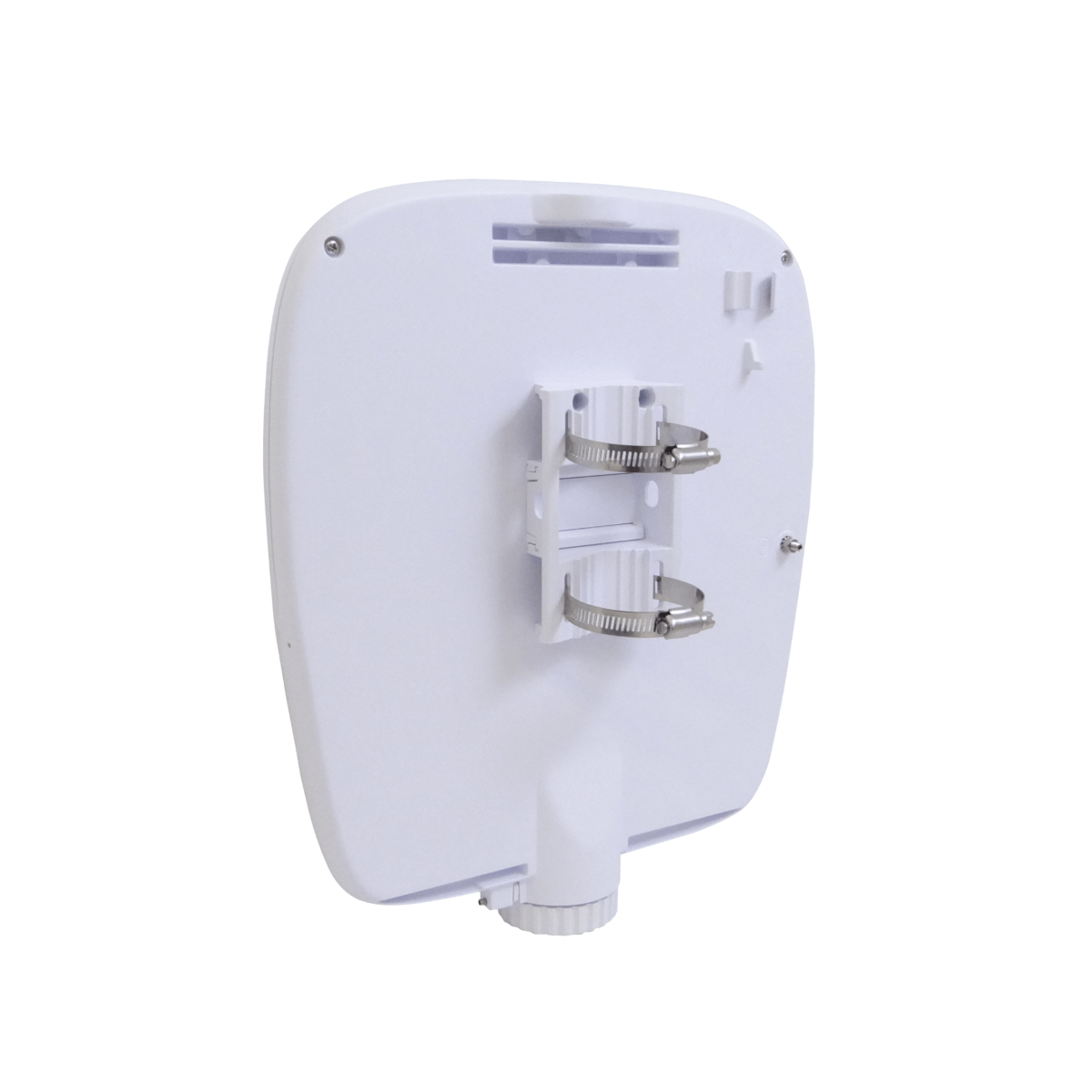

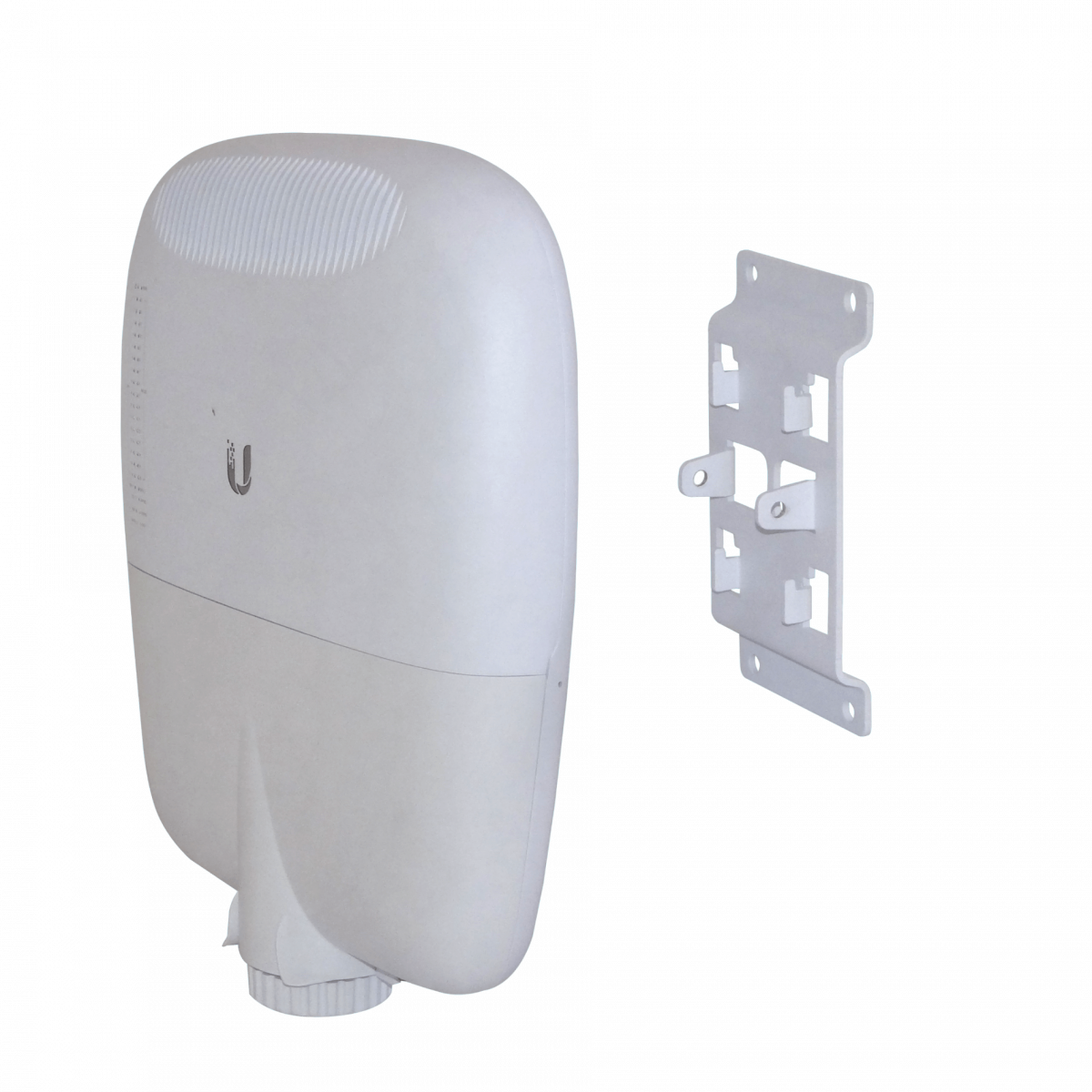

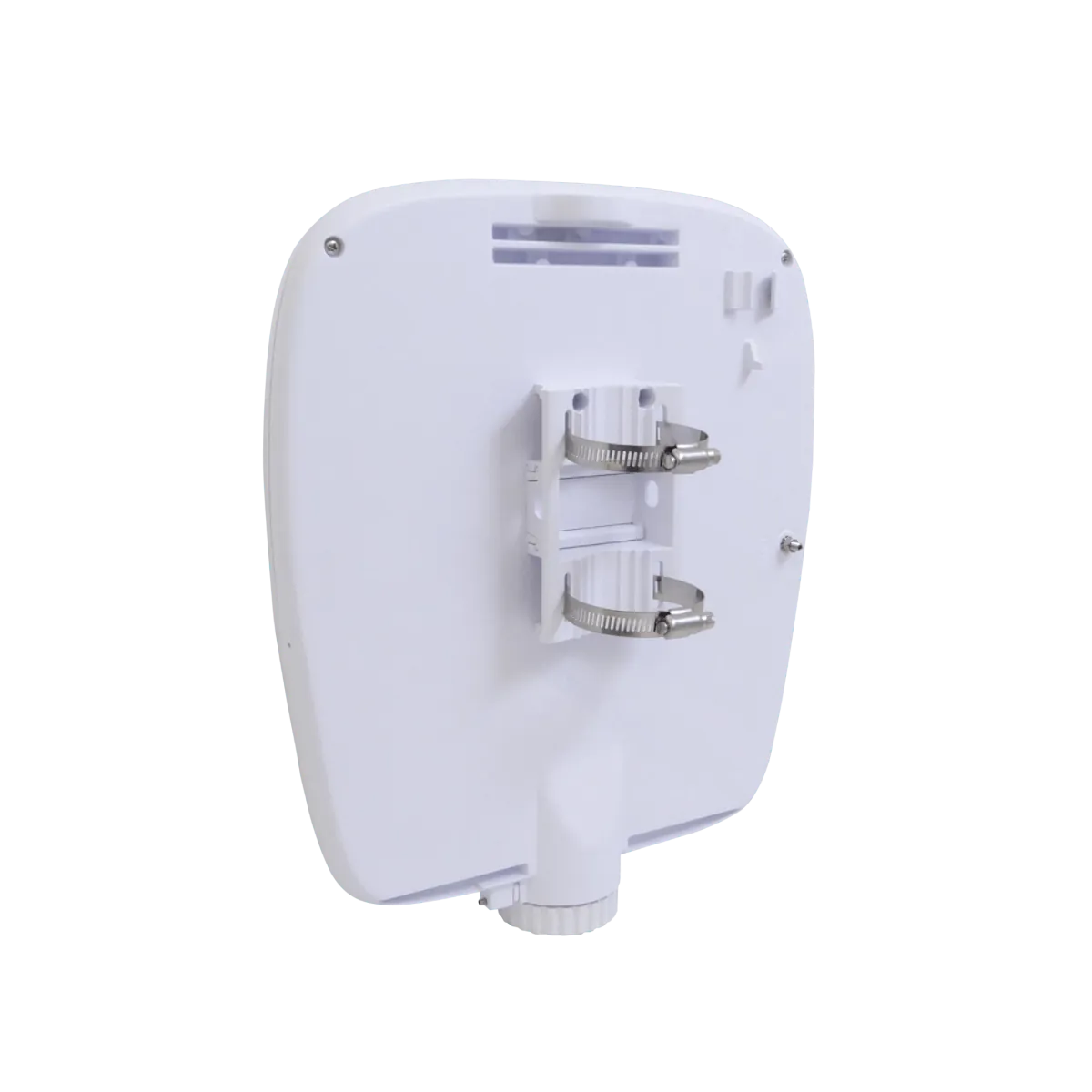

| Mount | Pole/wall mount |
| Wind loading | 153 N at 200 km/h (34 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |

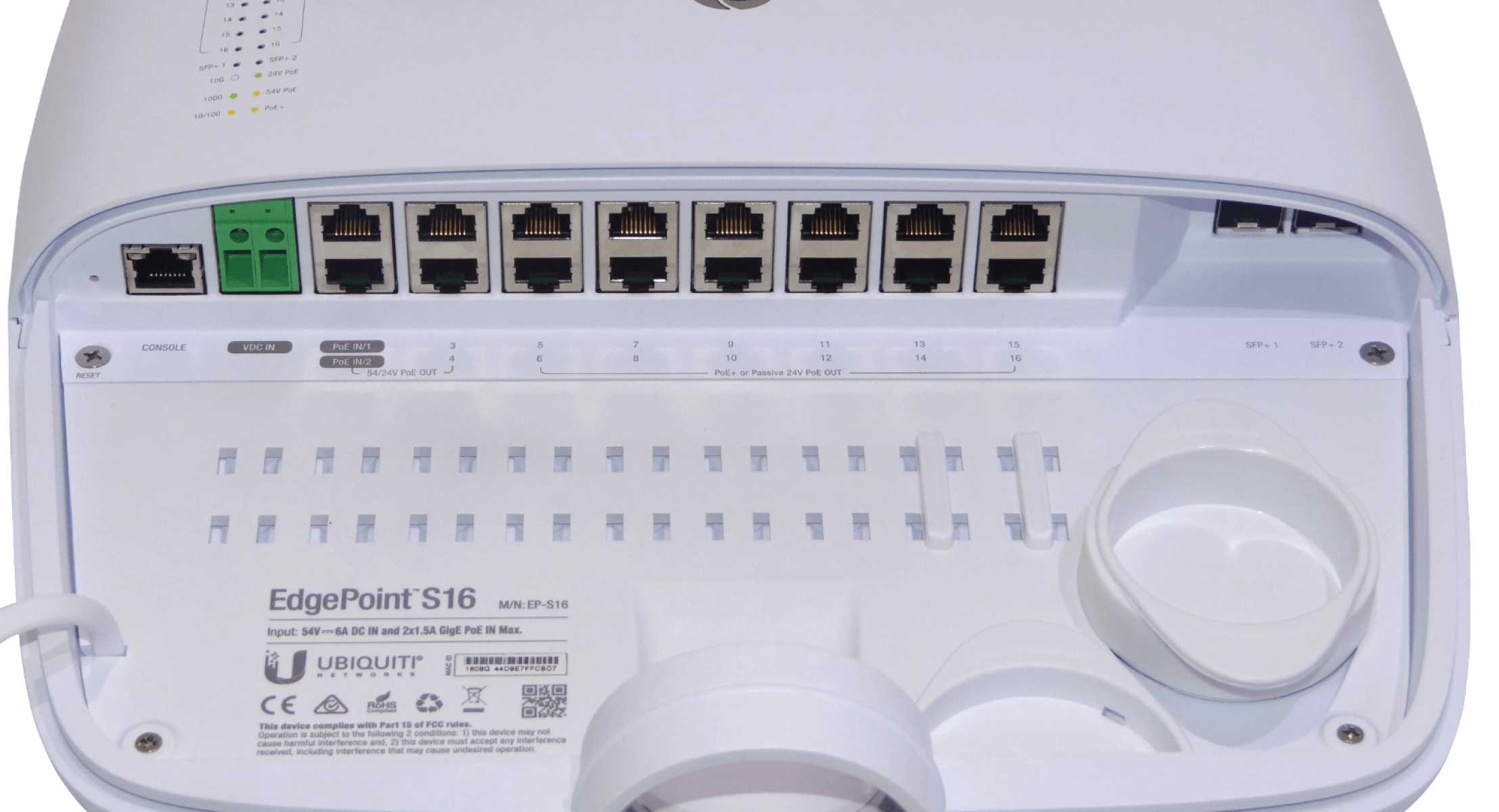

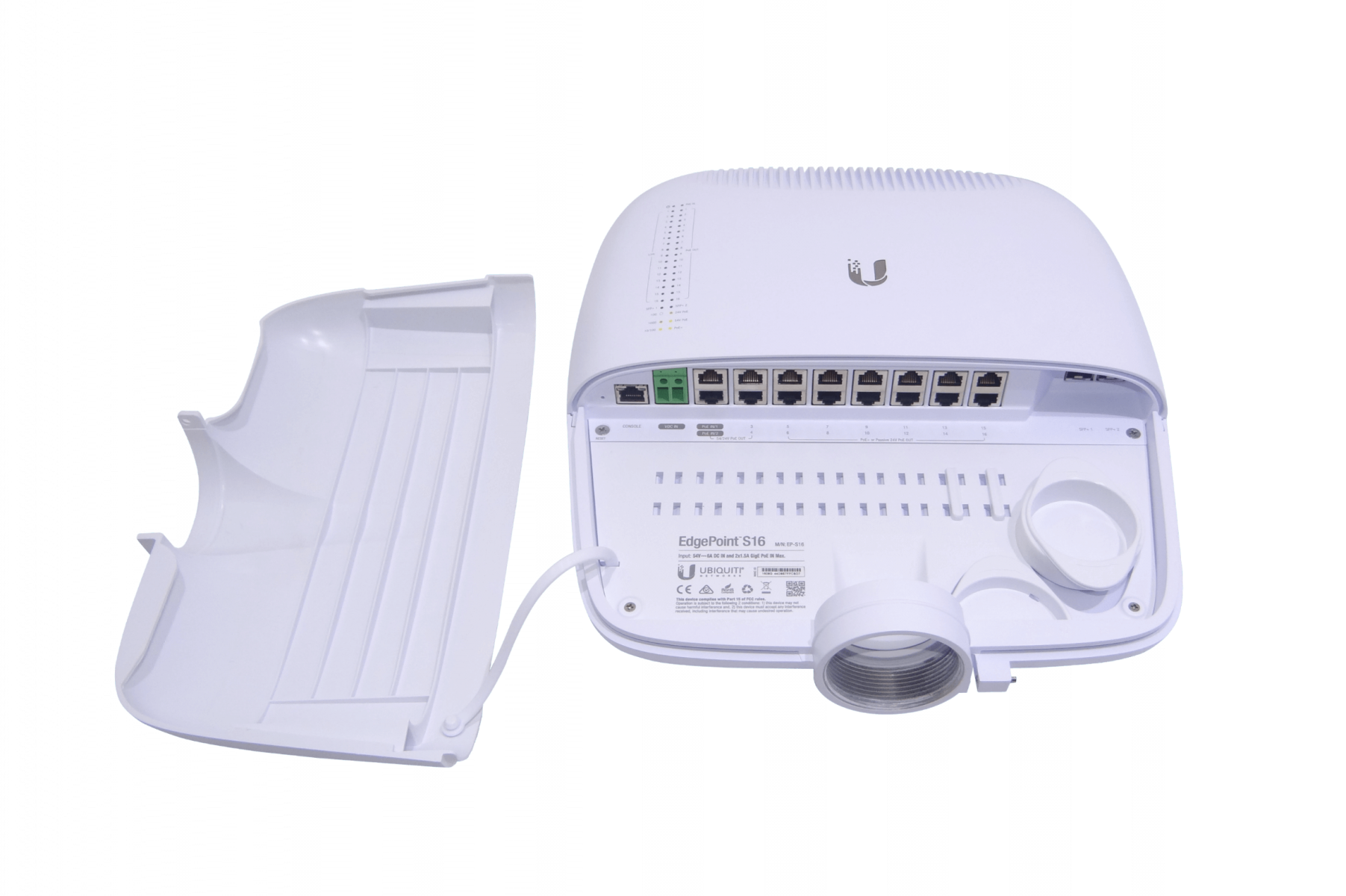

| Networking interface | (1) RJ45 serial port (16) 10/100/1000 RJ45 ports (2) 1/10 Gbps SFP+ ports |
| Power method* | (1) DC terminal block 54V DC, 6A input *Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs. |
| Power supply | Min. 54V / 0.8A (Excludes PoE output) |
| Passive PoE input* | (2) 54V / 1.5A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 and 2 *Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources. |
| Passive PoE output | (4) 54V or 24V /1.4A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 to 4 (12) PoE/PoE+ or 24V/0.7A, 2-pair (+ 4, 5; - 7, 8) passive PoE, ports 5 to 16 |
| Power monitoring | (1) DC terminal block, input power (2) RJ45, ports 1 and 2, PoE input or output power (14) RJ45, ports 3 to 16, PoE output power |
| Supported voltage range | 42–56V DC (-48V is NOT supported) |
| Max. power consumption | 40W (Excludes PoE output) |
| Button | Factory reset |
| LEDs | System: power RJ45 ports: speed/link/activity, PoE SFP ports: speed/link/activity |
| Ambient operating temperature | -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
