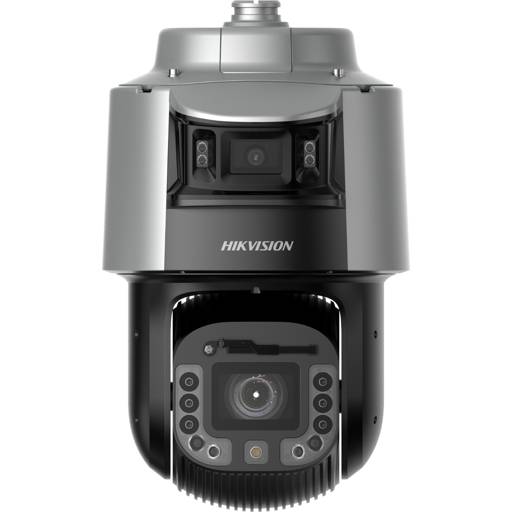

Cámara de Videovigilancia Hikvision TandemVu 8" 4MP 42x DarkFighter Network Speed Dome

Cámara

• Sensor de imagen[Bullet channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
• Iluminación mínima

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,

[PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR

• Velocidad de obturación1 s to 1/30000 s
• Obturador lentoYes
• Día y Noche[Bullet channel] Color, [PTZ channel] IR cut filter
• Zoom[PTZ channel] 42 × optical, 16 × digital
• Max. Resolución[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lente

• EnfoqueAuto,semi-auto,manual
• Velocidad del Zoom[Bullet channel] No, [PTZ channel] approx. 5.5 s
• Longitud focal[Bullet channel] 4 mm, [PTZ channel] 6 to 252 mm
• FOV[Bullet channel] horizontal field of view: 89° ± 5°, vertical field of view: 45° ± 5°, diagonal field of view: 107° ± 5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3°
• Apertura[Bullet channel] F1.0, [PTZ channel] F1.2

Iluminador

• Rango de luz suplementaria[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
• Luz de suplemento inteligenteYes

PTZ

• Rango de movimiento (pan)[PTZ channel] 0° to 360°
• Rango de movimiento (tilt)[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
• Velocidad de movimiento horizontal (pan)[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
• Velocidad de vertical (tilt)[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Pan[Bullet channel] No, [PTZ channel] Yes
• Preajustes300
• Escaneo de patrulla8 patrols, up to 32 presets for each patrol
• Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
• Memoria de apagadoYes
• Acción del parquePreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
• Posicionamiento 3DYes
• Pantalla de estado de PTZYes
• Congelación preestablecidaYes
• Tarea programadaPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Vídeo

• Third Stream[Bullet channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Main stream[Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-stream[Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Compresión de vídeo

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264/MJPEG

• Vídeo bitrate32 Kbps to 16 Mbps
• Tipo H.264Baseline profile,Main profile,High profile
• Tipo H.265Main profile
• Codificación de video escalable (SVC)H.264 and H.265 encoding
• Región de interés (ROI)8 fixed regions for each stream

Audio

• Compresión de audioG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Velocidad de bits de audio32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
• Frecuencia de muestreo de audio8 kHz,16 kHz,32 kHz,48 kHz
• Filtro de ruido ambientalYes

Red

• APIISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
• Almacenamiento en redNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• ProtocolosIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
• Vista en vivo simultáneaUp to 20 channels
• Usuario/operadorUp to 32 users. 3 user levels: administrator, operator, and user
• SeguridadPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
• ClienteiVMS-4200,HikCentral Pro,Hik-Connect
• Navegador webIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Imagen

• Wide Dynamic Range (WDR)[Bullet channel] 120 dB, [PTZ channel] 120 dB
• Interruptor día/nocheDay,night,auto,schedule
• Mejora de la imagenHLC,3D DNR
• DesempañarOptical defog
• Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
• Exposición regionalYes
• Enfoque regional[Bullet channel] No, [PTZ channel] Yes
• Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Interruptor de parámetros de imagenYes
• Máscara de privacidad[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• SNR≥ 52 dB

Supplement Detection

• Posicionamiento satelitalNo
• GyroscopeYes
• BrújulaNo

Interfaz

• Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
• Almacenamiento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Alarma7 input(s), 2 output(s)
• Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,

1 output (line out), line level, output impedance: 600 Ω

• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• ReiniciarYes

Evento

• Evento Básico[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
• Evento inteligente[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel & bullet channel] audio exception detection
• Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
• Seguimiento inteligente[PTZ channel] yes
• Smart LinkageManual tracking, auto tracking, tracking takeover, linked tracking capture

Deep Learning Function

• Multi-Target-Type Detection[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

General

• Función generalmirror,password protection
• alimentación36 VDC ± 25%, max. 70 W,including max. 6 W for heater and max. 6 W for supplement light of bullet channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel
• Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
• Limpiador de lenteYes
• DemistaYes
• MaterialADC12
• DimensiónØ290 mm × 453.2 mm (Ø11.42" × 17.84")
• Approx. 11.5 kg (25.35 lb.)
• Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones

• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
• SeguridadUL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
• AmbienteCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
• ProtecciónIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002)
